Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field

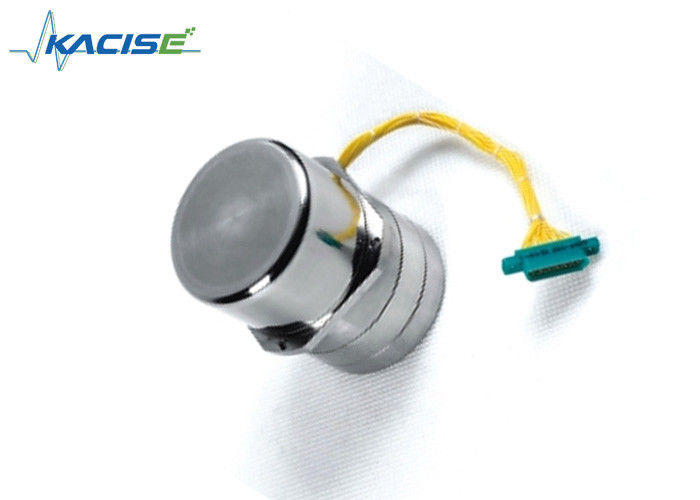

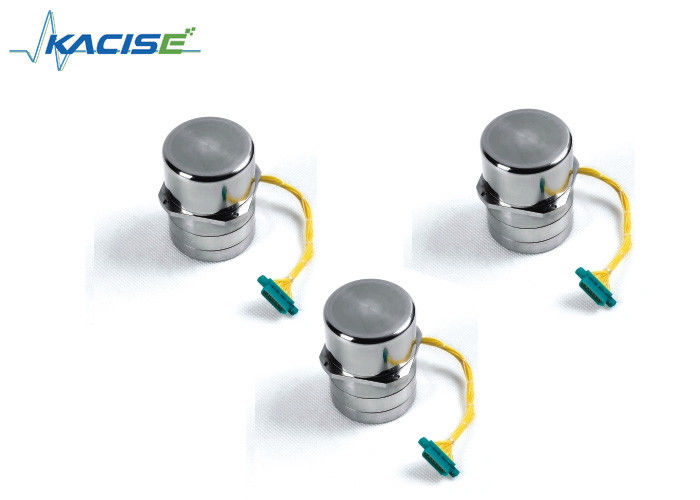

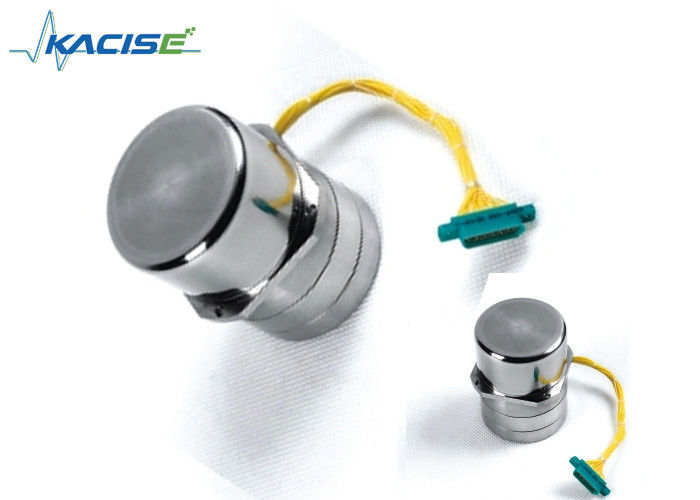

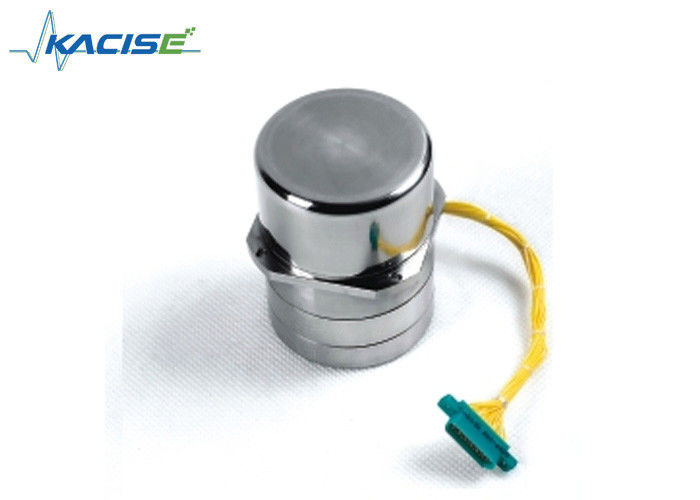

KTG-50 High Accuracy Dynamic Tuned Gyroscope for land strap-down system

Feature


• Light weight

•  Small size

•  Quick starting

• Used in high temperature environment


Introduction

In the drilling field, inertial devices is greater and more adaptable than flying field, because of its poor working conditions, environmental temperatures are high, the temperature of adaptation and life requirements are very demanding, KTG-M5 dynamically tuned gyro is designed for the case of the drilling field.

Parameter


Installation


Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.

Operation


• Only products matching the appropriate power and locked loop circuit board in order to work properly, need circuit board, please explain in advance.
• When the product under normal use, you should turn on the power to start the motor, about 40s, and then the on-lock loop, so that the products in closed loop state; shutdown, disconnect locked loop so that the product is in the open-loop operation, and then disconnect power supply.
• Product energized, shut down in 40s, should avoid shaking the product, the installation process should be light, light up, the product non-collision, percussion.
• Product in the use of the process is strictly prohibited to pull the plug.
• Product in the use of the process, can`t short circuit between external power supply.
• Abnormality occurs during use, should immediately turn off the power, fault isolation, if the product internal fault, the customer shall promptly notify my company, my company organized by the repair.

Dimension

 J30J-15T


Connector definition


 The socket type:J30J-15T (cable length160~175mm)


NOTE: The same applies to J30J-21T, if use other socket, please explain in advance.
