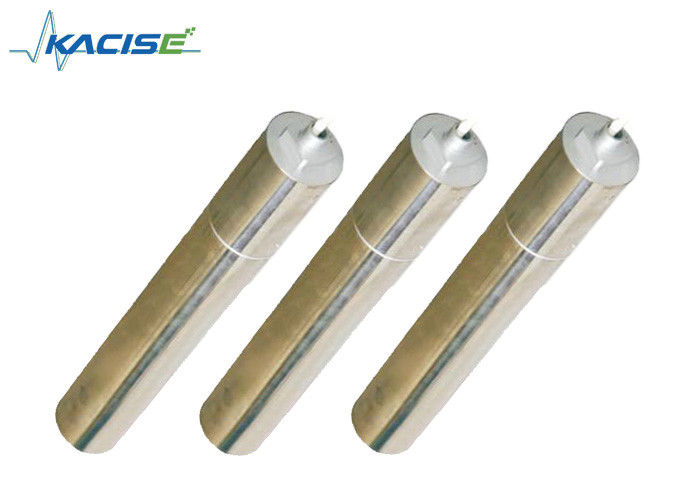

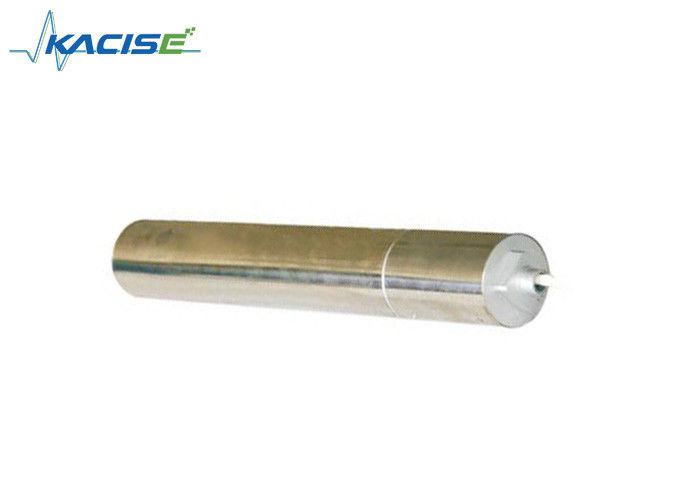

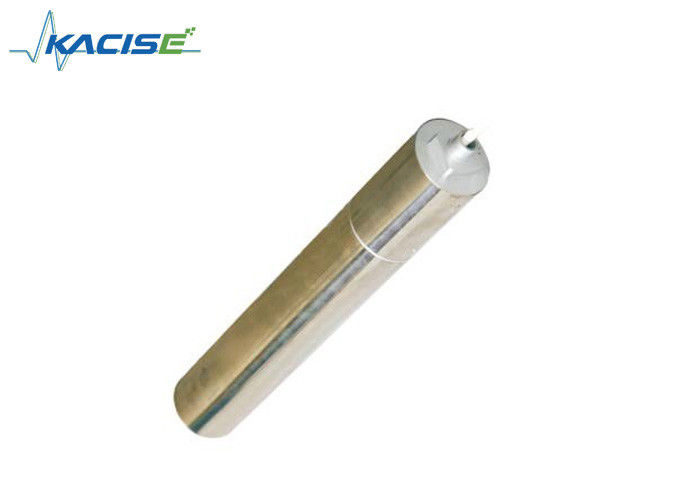

Three-axis Fiber Optic Gyroscope For Geological Exploration and Dam Measurement
Description
three-axis fiber optic gyroscope, fiber optic gyroscope and accelerometer as the main component, is the core component of the inclinometer to achieve the continuous inclinometer. It has high reliability, strong anti-poor environment, and high accuracy. This series of products successfully used in geological exploration, mining and oil inclinometer, dam measurement.
Dimension
Application fields
S Specification
| Parameter table | |
| Range | ±100(°)/S |
| Bias stability (1σ) | ≤0.3(°)/h |
| Scale factor repeatability | ≤150ppm |
| Random walk coefficient | 0.03(°)/√h |
| Working Temp. | -40°C~+70°C |
| Power supply | ±5V |
| Dimension | Φ64mm×450mm |
| Weight | ≤1500g |
| Output | Pulse |
Note: the technical specifications in the table can be customized according to the requirements.
