Place of Origin:
China
ब्रांड नाम:
KACISE
प्रमाणन:
CE
Model Number:
KCZ-301

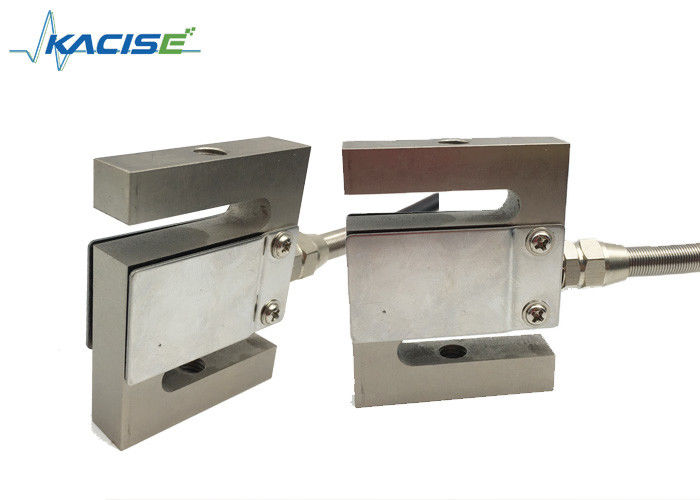

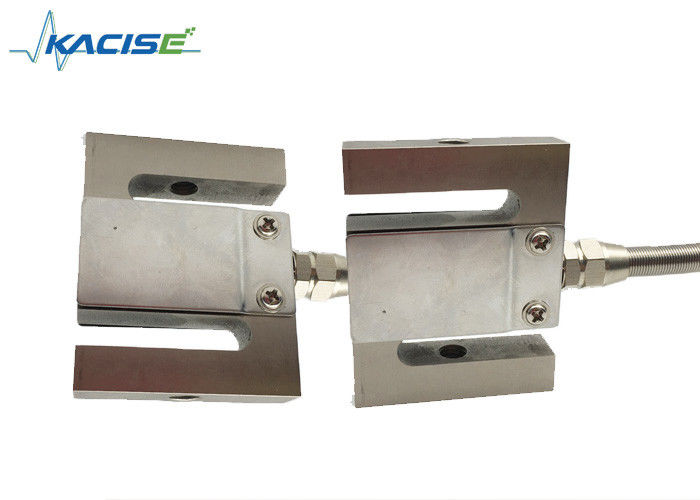

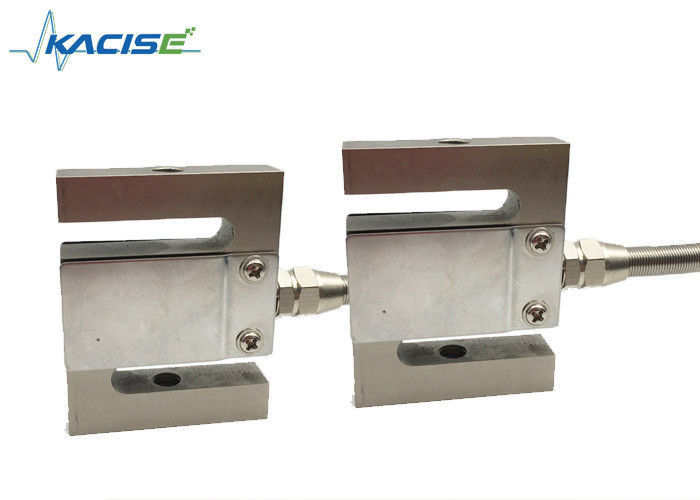

Industrial Aluminum Tension Load Cell s-Type With High Capacity 1kg To 200kg
*Applications
Automotive press ift, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system.
*Features
Model:KCZ-201
Small size, easy to use
Made of Aluminum alloy or Alloy steel
Capacity:1kg~200kg
Tension and compression load cell
High comprehensive precision, high stability
Simple structure, easy to install
*Mounting dimension
| Model | Load Deflection | Natural Frequenc | Weight |
| T318-10N | 0.18mm | 11kHZ | 106g |
| T318-50N | 0.18mm | 14kHZ | 106g |
| T318-100N | 0.18mm | 17kHZ | 106g |
| T318-200N | 0.18mm | 26kHZ | 106g |
| T318-500N | 0.18mm | 50kHZ | 106g |
| T318-1000N | 0.18mm | 64kHZ | 106g |
*Technical Specifications
| Capacity | 10, 20, 30, 50, 100, 200N |
| Sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.02%F.S. |
| Non-linearity | 0.05%F.S |
| Hysteresis | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Creep (30min) | 0.05%F.S |
| Temp.effect on output | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Input impedance | 350±310Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S |
| Ultimate overload | 300%F.S |
| Cable size | Φ2x4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless steel |
| IP class | IP67 |
| Cap (N) 5, 10, 20 | Need casing |
| Cap (N) 30, 50, 100, 200 | Casing is optional |
*Dimensions and Connection
