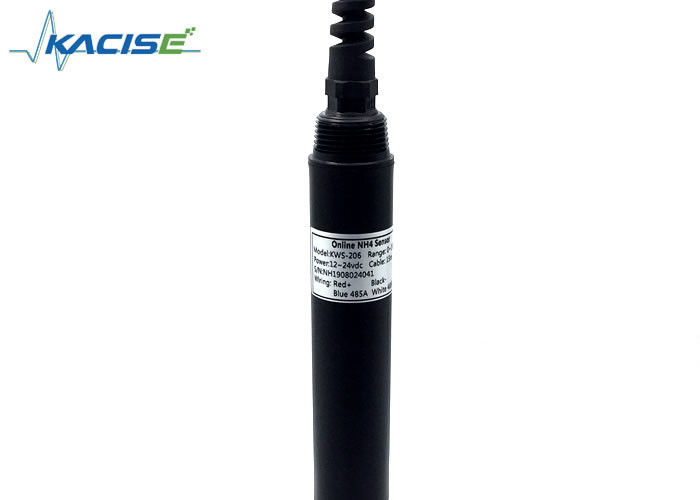

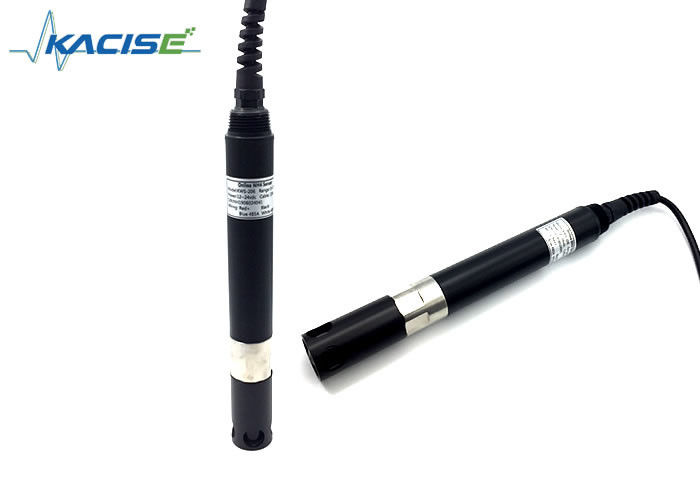

KWS-206 Online NH4-N Ammonia Nitrogen Sensor With pH And Temperature Compensation
Introduction
The Kacise KWS-206 integrated online ammonia nitrogen sensor is fabricated using a PVC membrane-based ammonium ion selective electrode for testing ammonium ion content in water with temperature compensation to ensure fast, simple, accurate and economical testing.
Feature
Technical Specifications
| Model | KWS-206 |
| Range | 0～1000mg/L |
| Resolution | 0.01mg/L |
| Accuracy | ±10% or ±1mg/L |
| Operating Temperature | 0～40℃ |
| Work Pressure | ＜0.1MPa |
| Ph Range of Medium | 4～10 pH |
| Temperature Compensation | automatic temperature compensation (Pt1000) |
| Power Supply | 12～24VDC ±10% |
| Output | RS485, Modbus/RTU |
| Material | PVC and POM |
| Installation | 3/4NPT, submersible installation |
| Cable Length | 5m, customizable |
| Calibration | two-point calibration |
| Power Consumption | ＜0.5W |
| Protection Grade | IP68 |
Dimension
