Place of Origin:
China (Mainland)
ब्रांड नाम:
Kacise
प्रमाणन:
certificate of explosion-proof, CE
Model Number:

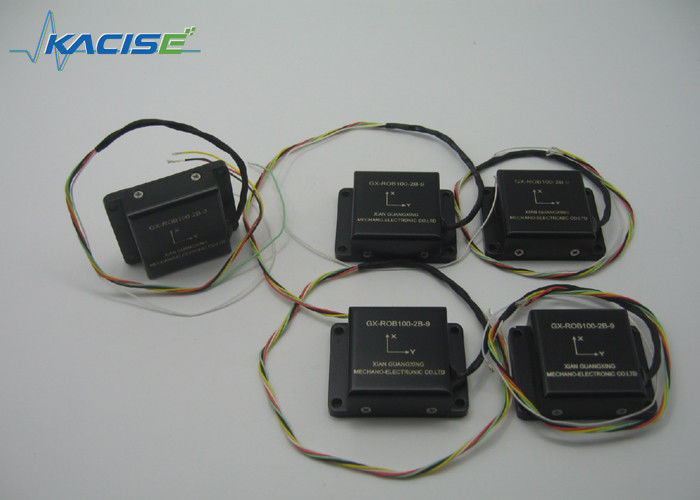

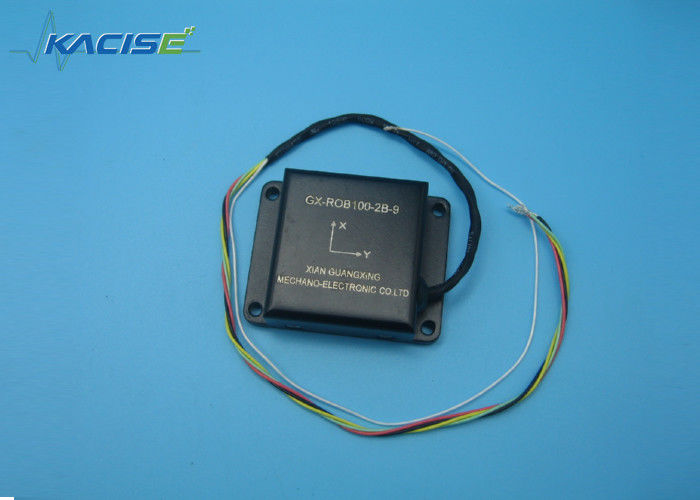

GX-ROB100
वीडियो
Feature
Product description
Using micro-electromechanical systems (Micro Electro-Mechanical System, MEMS) technology, which combines angular rate and linear acceleration measurement as a whole, for the roll angle, pitch angle, three-dimensional and three-dimensional acceleration angular rate measurements. Attitude angle and angular rate deviation through Kalman filter algorithm to estimate and correct.
Application field
Datasheet
| Technical parameters | performance indicators |
| Input voltage (Vdc) | 7.5 ~ 32Vdc |
| Performance | Dip |
| Measuring range (°) | ± 15 ~ ± 90 |
| Bias | ≤ 0.2 |
| Bias stability | ≤ 0.05 |
| Bias Repeatability | ≤ 0.05 |
| Start time (s) | <0.5s |
| Bandwidth | 8-28Hz |
| Resolution(°) | ≤ 0.03 |
| Nonlinearity (% FS) | <0.05% of FS |
| Data refresh rate | 50ms |
| Inter face | RS422 interface |
| Working Temperature | (℃) -40 ℃ ~ +85 ℃ |
| Storage Temperature | (℃) -55 ℃ ~ +100 ℃ |
| Resistance Acceleration(g) | 20000 |
| Weight (g) | <150 |
| Volume (mm3) | 48 * 36 * 15 |
Dimension (unit: mm)
