Place of Origin:
China (Mainland)
ब्रांड नाम:
Kacise
प्रमाणन:
ce,ISO9001
Model Number:
KUS series
1. Parameter

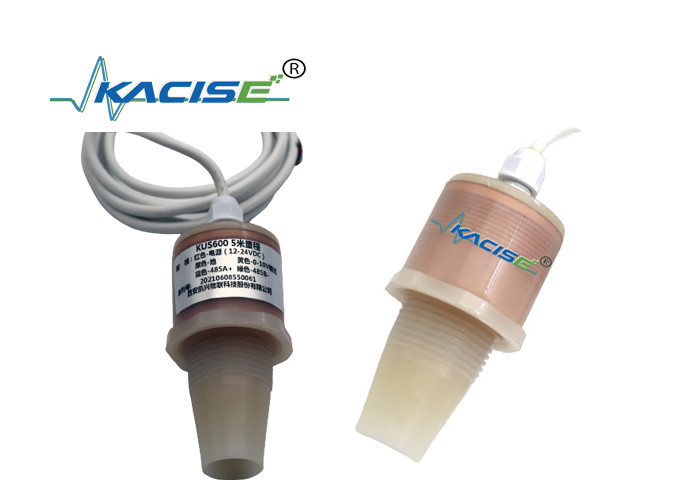

| Model: KUS600 | |
| Measuring range |
600... 5000 mm. The measure distance can reach 6 meters if the power supply is 24V. |
| Blind spot | 600 mm |
| Supply voltage | 3.3 ... 24 VDC,ripple 10 %SS |
| No-load supply current I0 | ≤ 20 mA active period and ≤0.3mA during sleep time |
|
Output signal |
0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
| Measurement accuracy | ≤1 %F.S. |
| Temperature compensation | Yes |
| Ranging resolution | 0.1mm； |
Working conditions
| Working temperature | -40…85℃(233...358K) |
| Storage temperature | -40…85℃(233...358K) |
Other instructions
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Protection class | IP67 |
| shell material | PVC /PVDF/PTFE/ABS |
Electrical connections and signal definitions
| Line order | Colour | Definition |
| 1 | Red | Power is positive |
| 2 | Black | power return ground |
| 3 | Yellow | Analog output, voltage output, current output switch output |
| 4 | Blue | RS485 A+ or uart TXD |
| 5 | Green | RS485 B- or uart RXD |
Unit in the diagram is mm
4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
5. Ordering information
| KUS | model | output | range | describe |
| 630 | Product series model | |||
| Custom made | ||||
| 0-10V | Analog 0-10V output | |||
| 0-5V | Analog 0-5V output | |||
| 0-3V | Analog 0-3V output | |||
| 4-20mA | Analog 4-20mA output | |||
| SW | Switch output | |||
| Uart | Uart serial output MODBUS RTU protocol | |||
| RS485 | RS485 output MODBUS RTU protocol | |||
| XX m |
XX m means the maximum measurement distance (default 10m) |
|||
| KUS | 550 | RS485 | 2m | |

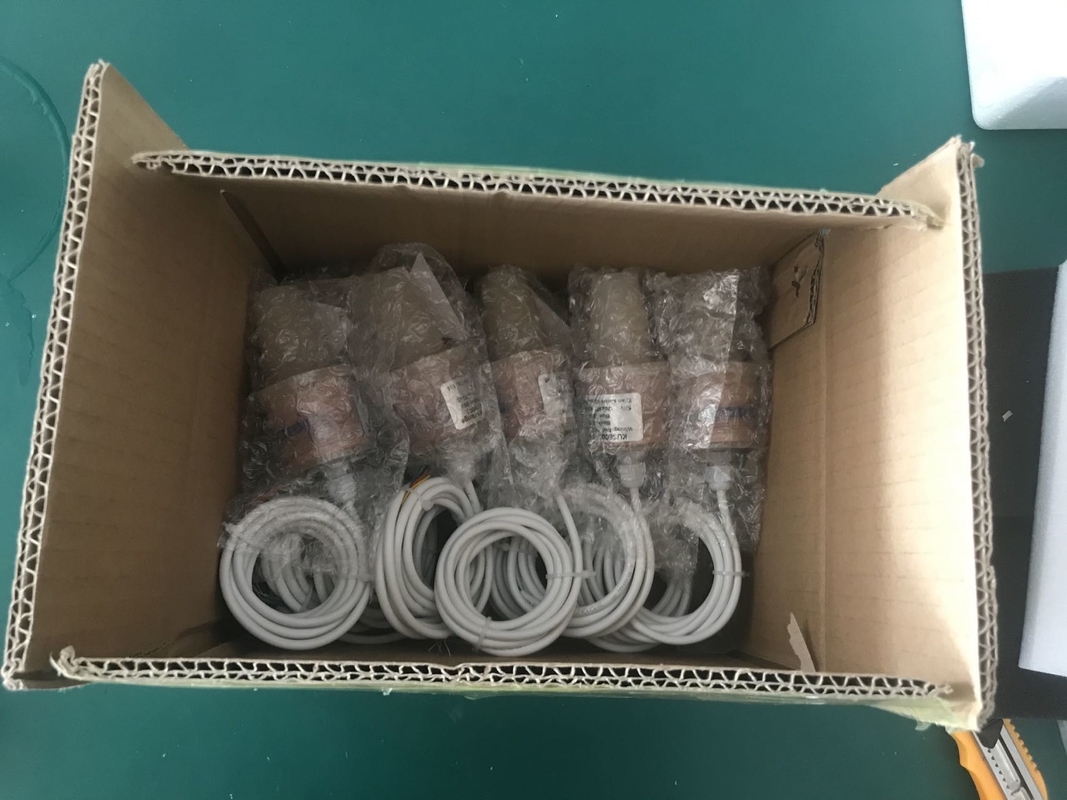

6. Packing and shipping
