उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
KACISE
प्रमाणन:
CE
Model Number:
GXPS350
Low consumption wireless piezo fuel oil pressure transducer sensor
1. Specification:
|
Spec. |
Value |
Remark |
|
|
Type |
GXPS350A |
GXPS350B |
|
|
Pressure range |
0~0.2MPa......60MPa |
1MPa=10bar 1bar≈14.5PSI 1PSI=6.8965kPa 1kgf/cm2=1atmosphere pressure 1 atmosphere pressure =98kPa |
|
|
Overload pressure |
1.5times nominal value(1.5X) |
||
|
Fracture pressure |
3times nominal value (3X) |
||
|
Accuracy |
±0.5%F.S |
||
|
Stability |
Typical value 0.25%F.S/year |
||
|
Working temperature |
-10°C~60°C |
||
|
Compensation temperature |
-10°C~60°C |
|
|
|
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
|
|
|
Transmission Method |
ZIGBEE |
|
|
|
Power supply |
3.6V/1battery (1) |
|
|
|
Insulation |
>100M Ω @50V |
|
|
|
electric strength |
500V@60 second |
|
|
|
vibration/Impact |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
|
|
|
Display range |
Display not operating |
display:0.001~999999 |
|
|
Pressure tap |
M20×1.5,G1/4,G1/2,R1/2,NPT1/2 |
|
|
|
Pressure type |
Gauge pressure G,S |
Response time:10ms |
|
|
Electromagnetic compatibility |
electromagnetic radiation:EN50081-1/-2;electromagnetic Sensitivity:EN50082-2 |
|
|
2. Feature:
1). Diffused-Silicon core
2). Wireless communication
3). Self Organizing Mesh net
4). Battery power, Low Consumption
5). LCD Indicator
 |
3. Application:
1). Wild field or non power distribution situation
2). Pipeline pressure monitoring
3). Metallurgical chemical

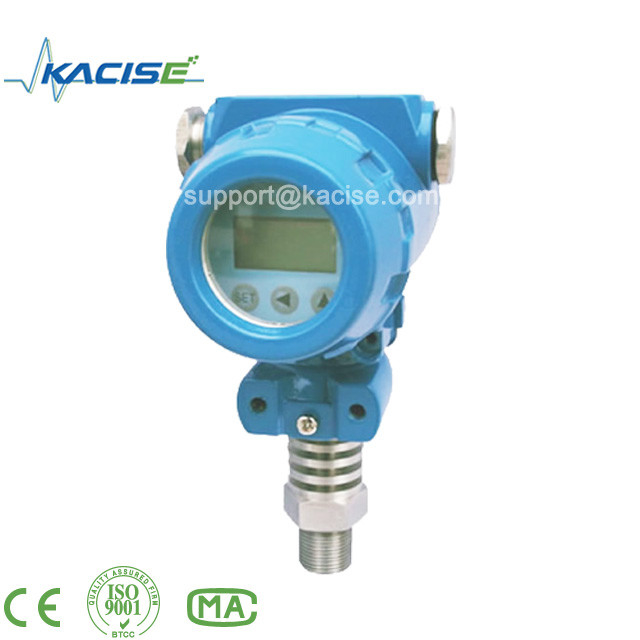

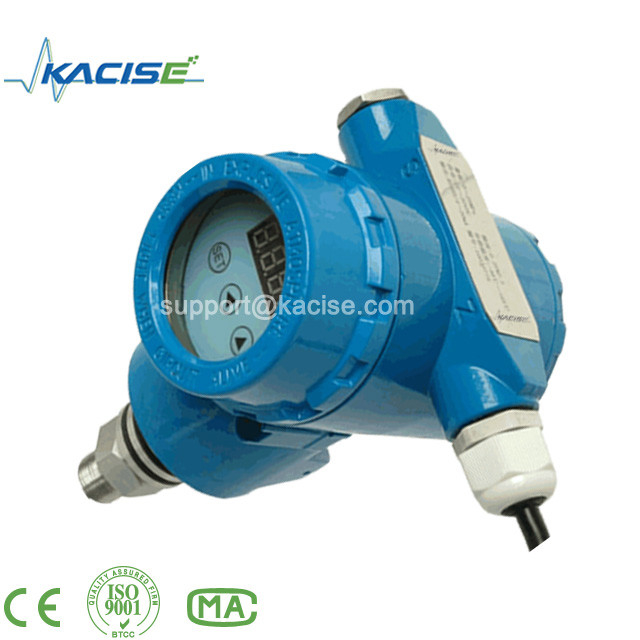

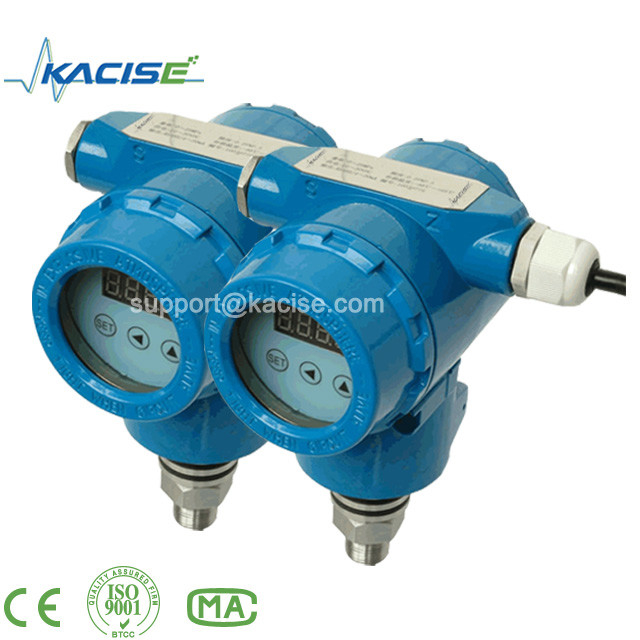

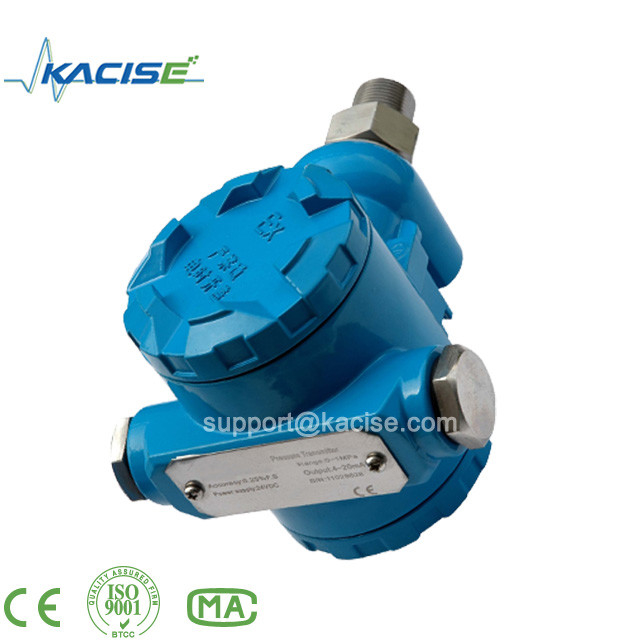

4. Product picture
|
