Place of Origin:
China (Mainland)
ब्रांड नाम:
Kacise
प्रमाणन:
certificate of explosion-proof, CE
Model Number:
KsINS-02
| Action range | 1km~8km |
| Navigation accuracy | 1.0m(1σ,lateral accuracy)/20m+1%H (1σ, horizontal positioning accuracy, H is the height of the aircraft relative to the ground) |
| Operating temperature | -40℃ ~+60℃ |

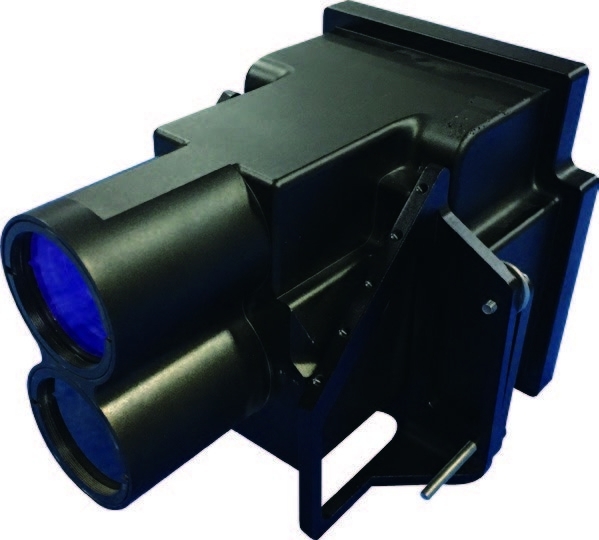

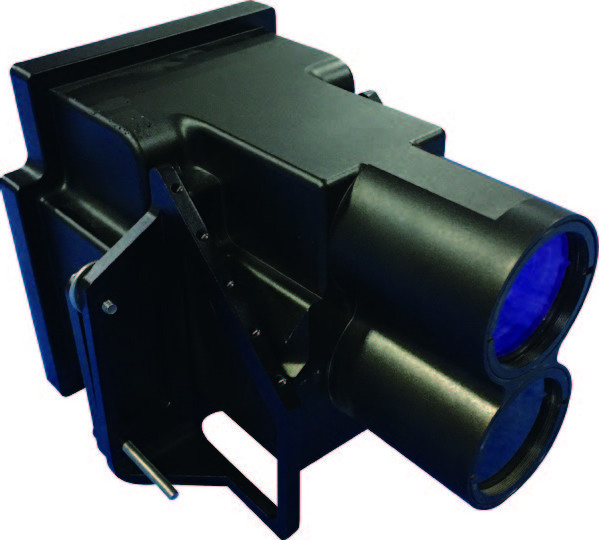

The KsINS-02 is an advanced airborne inertial visual navigation system composed of inertial navigation, visible light camera, infrared camera, and AI data processing circuitry. Utilizing optical imaging and inertial measurement principles, it provides UAVs with comprehensive motion data including attitude, speed, position, angular velocity, and acceleration.
| Take-off | Cruise Section | Landing Section | |
|---|---|---|---|
| Action range | Before leaving the ground | 1km~8km (relative altitude) | 5km~Stop (runway width ≥45m) |
| Navigation accuracy | 1.0m(1σ,lateral accuracy) | 20m+1%H (1σ, horizontal positioning accuracy) | 1.0m+1‰D (1σ, lateral accuracy) |
| Operating temperature | -40℃ ~+60℃ |
| Storage temperature | -45℃ ~+65℃ |
| System preparation | Static base alignment (5 minutes) |
| Field of view (visible light) | 57.80°×34.50° |
| Field of view (infrared) | 35.83°×27.26° |
| Dimensions (L×W×H) | 179mm×140mm×126mm |
| Weight | ≤ 2.0kg |
| Front view installation | 10-M3×8mm threaded hole |
| Downward view installation | 4-M4×8mm threaded hole |
| Power supply | 28V (24V~36V adjustable) |
| Power consumption | ≤ 40W |
| User connector | F104Z19K092-140 (power supply and communication) |
| Debug connector | F104Z19K086-240 (software upgrade) |
| Video output | 2×SMA connector (1920×1080@30Hz SDI) |
| Communication | RS422 serial ports (200Hz inertial input, 5Hz flight control input, 100Hz navigation output) |
