उत्पत्ति के प्लेस:
चीनी
ब्रांड नाम:
KACISE
प्रमाणन:
CE
मॉडल संख्या:
KAW100

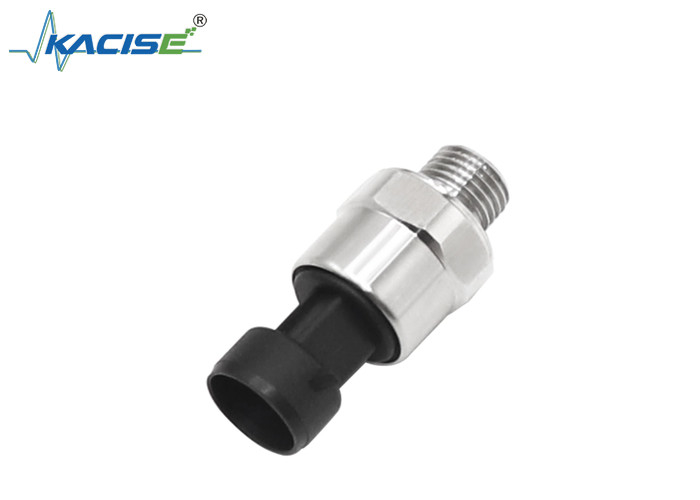

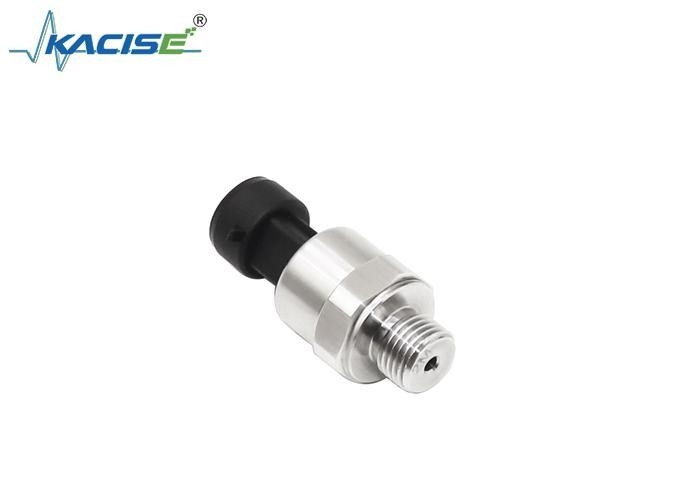

KAW100 All - in - One Precise Measurement Automotive Pressure Sensor
Introduction
The KAW100 All - in - One Precise Measurement Automotive Pressure Sensor is specifically designed for a wide range of automotive applications, including vehicles, transmissions, air - conditioning systems, and oil pressure measurements.
Product Applications
This sensor features a fully welded 316L diaphragm and is filled with diffusible silicon oil. It doesn't require any O - ring seals that could contact the pressure medium, making it compatible with all types of liquids. The absence of moving parts ensures a longer service life.
It offers multiple process connection options, facilitating easy installation. With a typical accuracy of 1%, it provides excellent precision for critical applications. Factory - calibrated, there's no need for on - site calibration. It has plug - and - play reliability, and its rugged and compact design saves installation space. Additionally, OEM/ODM services are available to meet special requirements.
Product Description
| Model | KAW100 |
| Power Supply | 4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC |
| Supply current | 15mA MAX |
| Pressure range | 0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized) |
| Output | 0.5V~4.5V DC,(10%-90%VCC) |
| Process Connection | G1/4,7/16-UNFfemale,(cusomized) |
| Electrical connector | Pack |
| Working Temperature | -40℃C~130℃℃ |
| Storage Temperature | -50℃~135C |
| Safe Pressure | 1.5~2 time of the pressure range |
| Burst Pressyre | 100Bar G |
| Accuracy | +1%F.S( Linearity,Hysteresis, Repeatability, Calibration) |
| Total Error Band | Static error band @25℃,5VDC,+3%(-30℃~125°℃) |
| Meadium | Engine oil, POE oil, refrigerant, gas, water or liquid |
| Material | Housing 304 SST; wetted parts 316L |
| Mounting Torque | 10~20N·m |
| Anti-freeze function | The sensor has no anti-freezing function when the sensor's working medium is water. |
