Place of Origin:
Shaanxi, China (Mainland)
ब्रांड नाम:
KACISE
Model Number:
KMF-Series

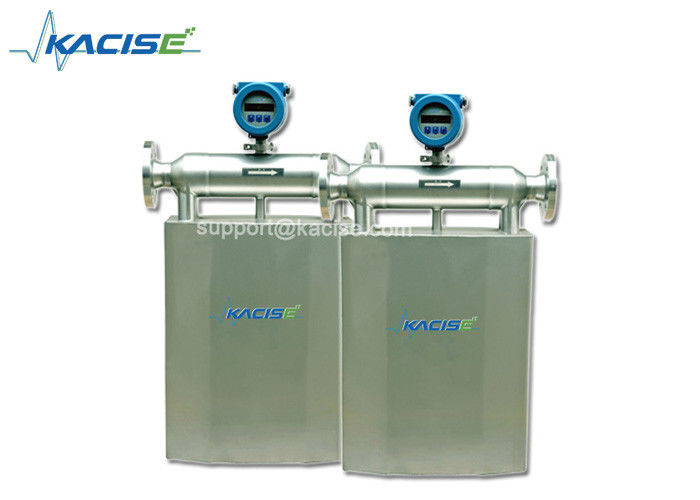

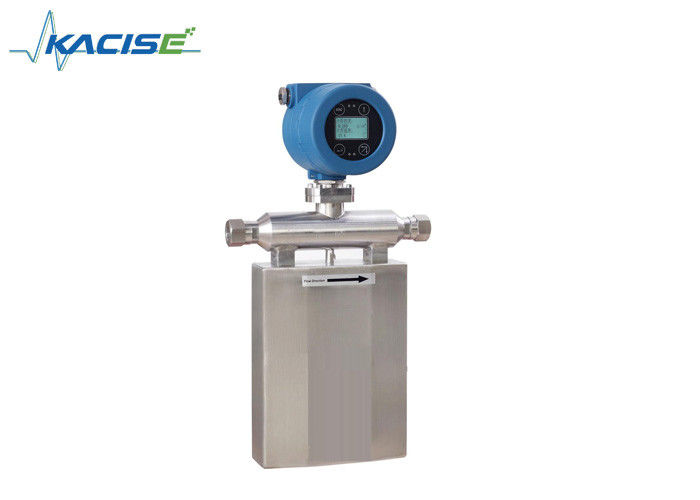

High Accuracy 4～20mA RS 485 Liquid Coriolis Mass Flow Meter

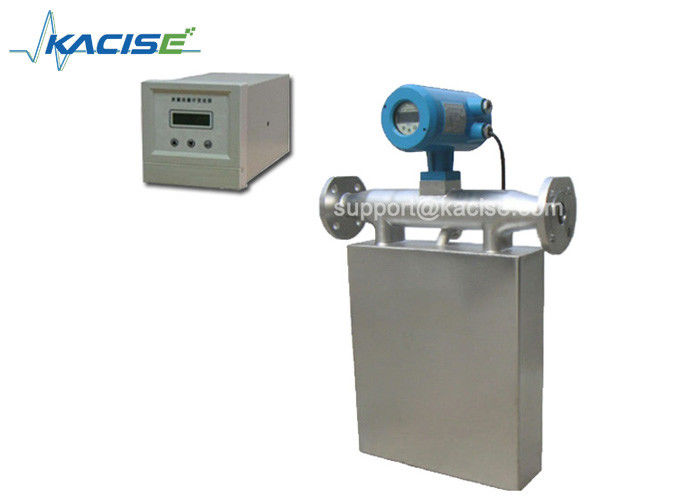

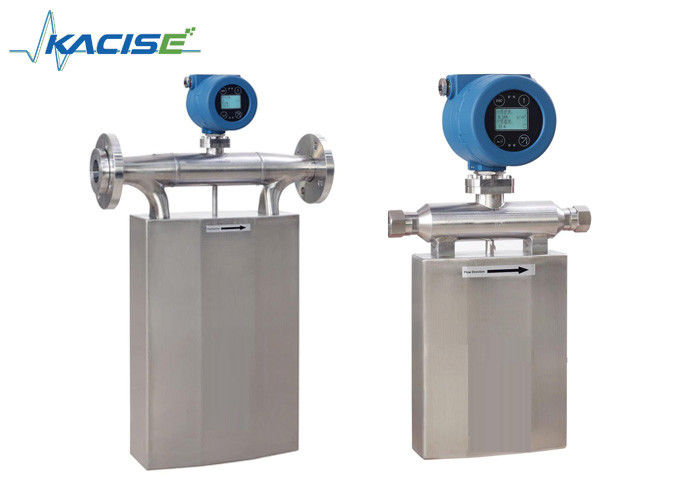

KMF-Series Coriolis Mass Flow Meter directly measures the "Mass" of the medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity, etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards. The Explosion- proof standard is Ex d ib ⅡC T5 Gb.
Coriolis Mass Flow Meters could directly measure the "Mass" of the liquid. And the accuracy is the highest among all types of flow meters, saying, ±0.1%~±0.2%. The range of application is very large, and it could be used for the medium that difficult to be measured, like, high temperature, high pressure, high viscosity, double phases, triple phases. The requirements for the installation are low, the straight pipe requirements in front of and behind the Coriolis Mass Flow Meters are low. They are more reliable, stable, and the maintenance level is low.
details
Parameters
| Module | DN | Measurement Scope | Work Pressure (MPa) | Connection Type(mm) |
| KMF-1-1AB | 1.5 | 0～4(kg/h) | 0～4 | Weld Joints Φ6×1.5 |
| KMF-1-1A | 3 | 0～40(kg/h) | 0～4 | Weld Joints Φ6×1.5 |
| KMF-1-1B | 6 | 0～100(kg/h) | 0～4 | Weld Joints Φ10×2 |
| KMF-1-2A | 8 | 0～200(kg/h) | 0～4 | Weld Joints Φ10×1 |
| KMF-1-3A | 10 | 0～500(kg/h) | 0～4 | Flange DN10 |
| KMF-1-3B | 15 | 0～1000(kg/h) | 0～4 | Flange DN15 |
| KMF-1-4 | 20 | 0～3000(kg/h) | 0～4 | Flange DN20 |
| KMF-1-5A | 25 | 0～10(T/h) | 0～4 | Flange DN25 |
| KMF-1-5B | 40 | 0～20(T/h) | 0～4 | Flange DN40 |
| KMF-1-6A | 50 | 0～30(T/h) | 0～4 | Flange DN50 |
| KMF-1-6AB | 65 | 0～50(T/h) | 0～4 | Flange DN65 |
| KMF-1-6B | 80 | 0～100(T/h) | 0～2.5 | Flange DN80 |
| KMF-1-6C | 100 | 0～150(T/h) | 0～2.5 | Flange DN100 |
| KMF-1-6CD | 125 | 0～200(T/h) | 0～2.5 | Flange DN125 |
| KMF-1-6D | 150 | 0～400(T/h) | 0～2.5 | Flange DN150 |
| KMF-1-6E | 200 | 0～500(T/h) | 0～2.5 | Flange DN200 |
Mass flow meter installation
Instrument Selection
Delivery details
7 working days quick delivery. / Suggested Express company: DHL.
our service
1.Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2.Q: How about the quality control?
A: All products will be tested for 3 times before packed.
3.Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
4.Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our Liquid mass flow meter work perfectly at your end.
