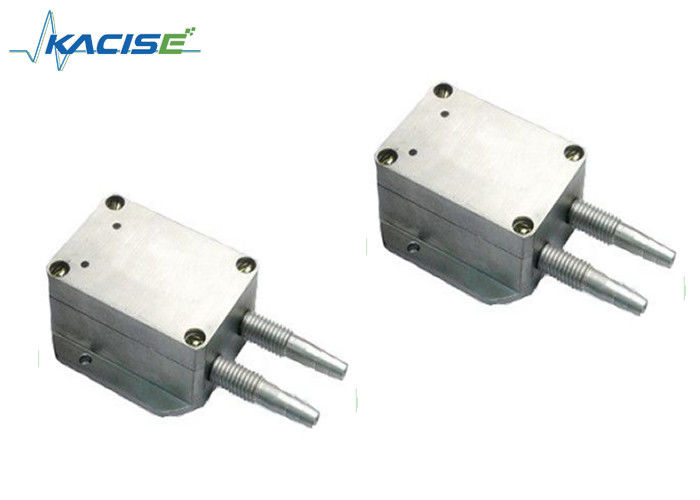

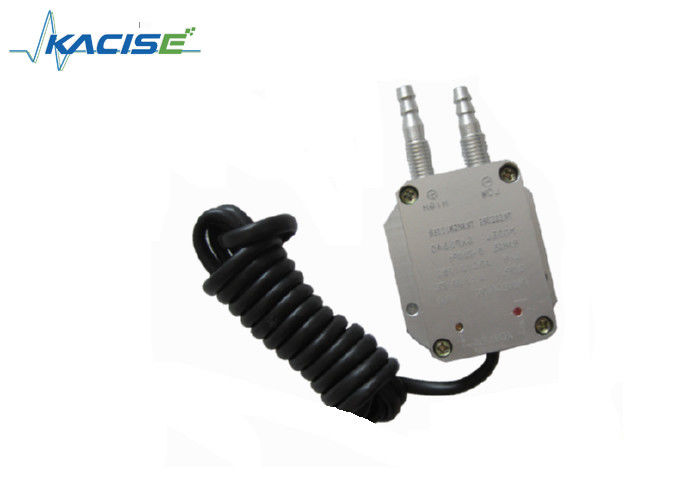

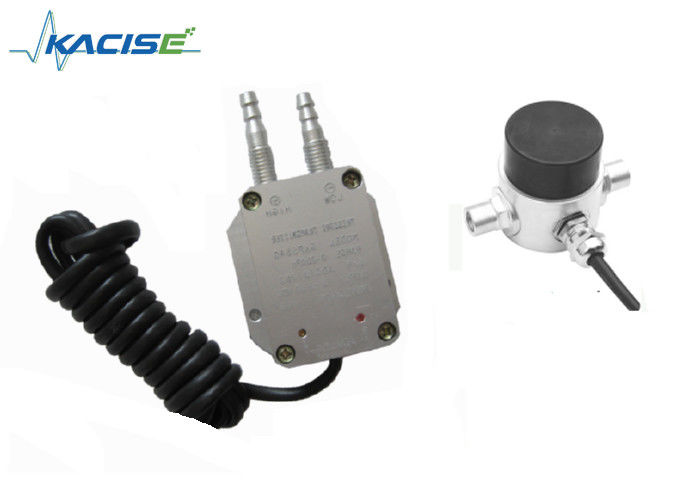

GXPS540 High Sensitive and Accuracy Mini Outline Wind Pressure and Differential Pressure with 4-20mA output
Introduction

GXPS540 Wind Pressure  Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.

Feature ​

• High sensitivity
• High accuracy and high stability
• Mini outline, easy to install

Electronic interface and signals definition


Parameter


Dimension

There are 2 adjustable slot type screws on the GXPS540.

Z is for zero adjustment.

S is for Full range adjustment. (If the range is not changed, no need to be adjusted.)

Note: If the range is <1KPa, the placement may affect the zero point. Please adjust Z after the installation.

Application

• Boiler
• Dust precipitator
• Air duct pressure
• Differential and negative pressure

Ordering information


GX- -Range-Output-Accuracy-Power-Structure-Cable length-Package

• Range: 0~±5kPa……10000kPa = the upper limitation of the range
• Output:: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
• Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S,
• Power: 24VDC, 11~30Vdc
• Pressure port : GF=G1/4 female thread, G=G1/4, NF=NPT1/4Female thread, N=NPT1/4
• Electric connection: C=Cable, CW=waterproof joint outlet
• Cable length: XXm=XX meter 1-150m
• Static pressure: 3, 5, 10 times nominal pressure, 20MPa (note: pipeline pressure)
• Package: Bb, Foam
