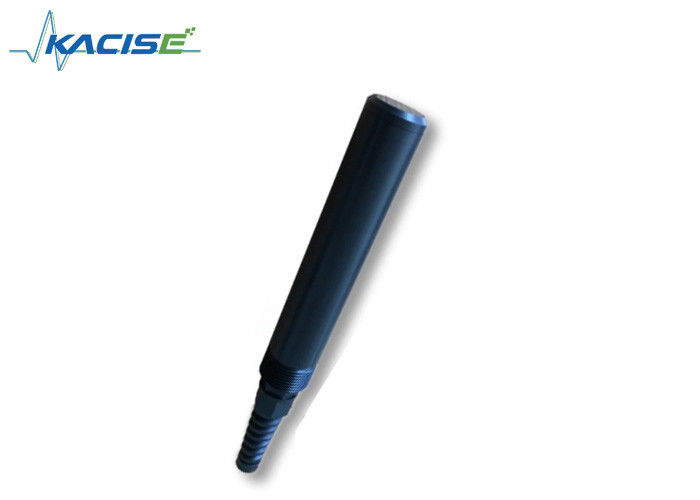

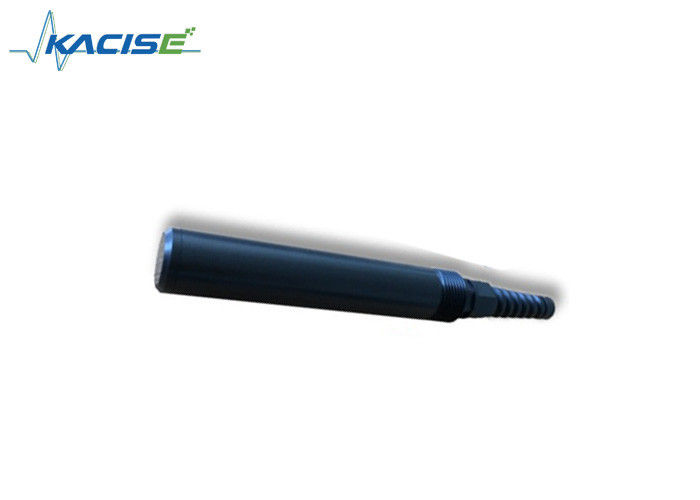

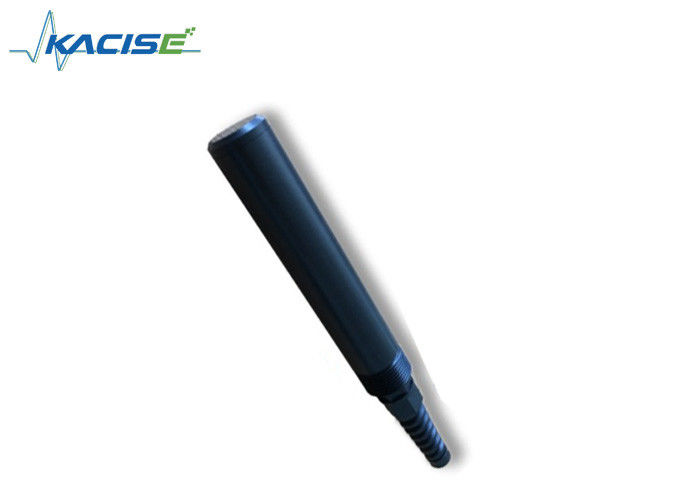

kws-500 Online digital ORP sensor
1. Applications
The Kacise ORP sensor features an industrial in-line electrode with a flat front end for easy cleaning. Built-in temperature sensor for online long-term monitoring environment. The sensor adopts RS485 output and supports Modbus, which can realize networking and system integration without controller.
2. Feature
Digital sensor, RS-485 output, support MODBUS
Unaffected by transmission distance for better stability
Built-in temperature sensor, automatic temperature compensation
3.Technical Specifications
| product | parameter | |
| principle | Ultraviolet fluorescence method | |
| Measuring range | -999~999mV | |
| Response time | 10 sec | |
| accurate | ±20mV | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | |
| size | Φ26*177.5 mm | |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| product material | POM | |
