Place of Origin:
China (Mainland)
ब्रांड नाम:
Kacise
प्रमाणन:
certificate of explosion-proof, CE
Model Number:
GXPS353

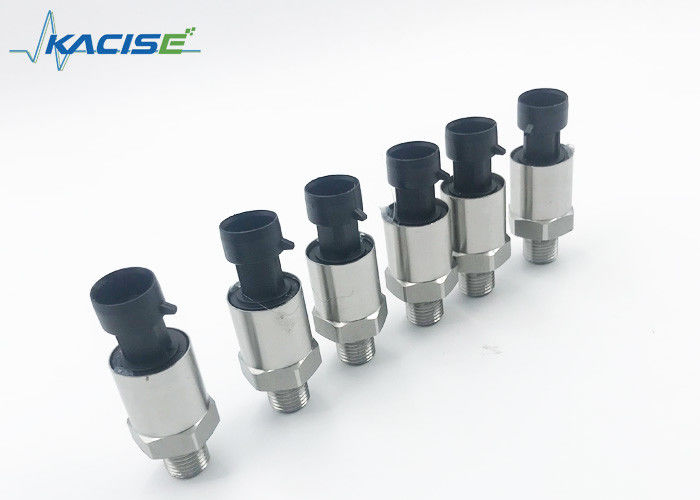

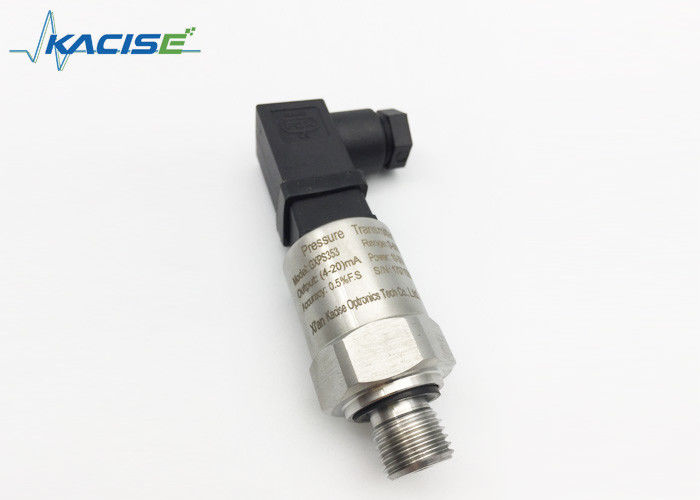

Silicon Oil Filled Stainless Steel Analog Output Air Conditioner Pressure Sensor
*. Description
GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.
Standard voltage current output mode.
*. features
*. Parameter
| Spec. | Value | |||
| Pressure range | 0~2bar ......600bar | |||
| Load pressure | 1.5times nominal value pressure (1.5X) | |||
| Rupture pressure | 3times nominal value pressure (3X) | |||
| Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | |||
| Stability | Typical value 0.5%F.S, Max. value: 1%F.S | |||
| Operating temperature | -40°C~125°C | |||
| Storage temp. | -40~120℃ | |||
| Compensation temperature | -10°C~ 80°C | |||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
| Electrical performance | 2 wire system | 3 wire system | ||
| Output signal | 4~20mA | 0.5~4.5V | ||
| Power supply | 10~30Vdc | 5Vdc | 10~30Vdc | |
| Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
| Insulation | >100M Ω@50V | |||
| Electric strength | 500V@60 second | |||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
| Pressure durable | 2×106pressure circle @25°C | |||
| Electrical connection | Packard, Hirsmann , air plugs, fixed cable, water proof cable | |||
| Pressure port | G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2, | |||
| Pressure type | G, S | Response time: 10ms | ||
| Certificate | Intrinsically safe mode E, RoHS; CE | |||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
*.Application
*.Packing and shipping
