Place of Origin:
China (Mainland)
ब्रांड नाम:
Kacise
प्रमाणन:
certificate of explosion-proof, CE
Model Number:
KBU601

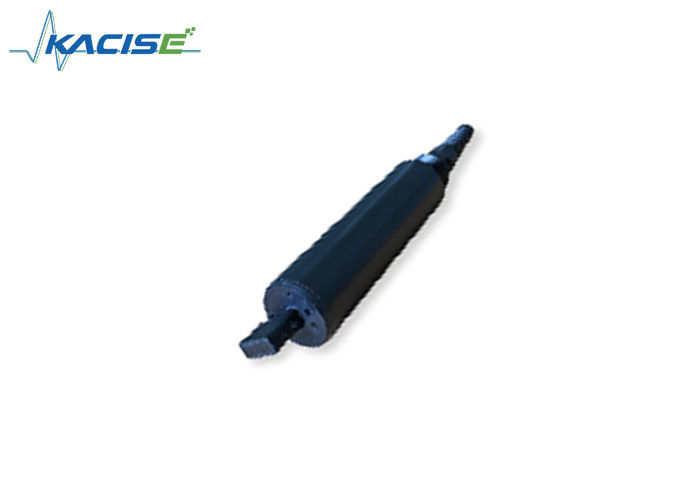

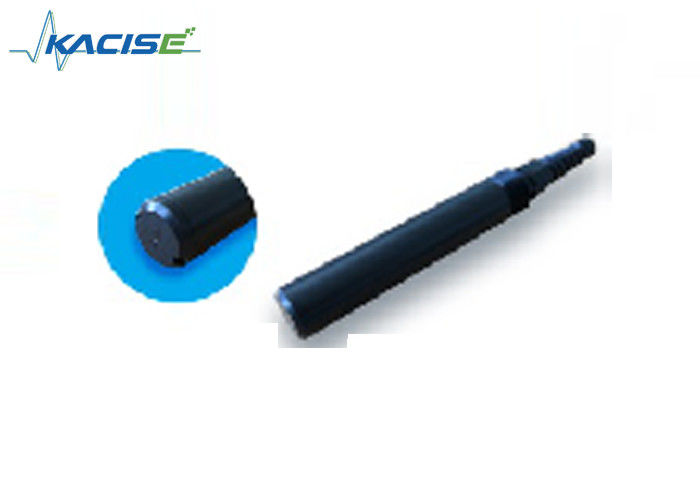

Self-cleanning Fiber turbidity sensor Used in Water Quality Measurement or Aquaculture Industry Turbidity Sensor
Kacise Sensing applies fiber technology to the turbidity sensor to make the sensor has better repeatably and stability, not susceptible to ambient light coordination. The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement. Long-term online use, longer maintenance intervals and better stability.
2. Feature
Digital sensor, RS-485 output, support MODBUS, with automatic cleaning brush, prevent pollution, eliminate air bubbles, strong anti-interference ability, no ambient light and chromaticity, 90° scattered light principle, better fiber technology repeat-ability.
3.Technical Specifications
|
product |
Fiber turbidity sensor |
Self-cleaning turbidity sensor |
|
|
Principle |
90° scattered light |
||
|
Measuring range |
0-1000NTU |
||
|
Resolution |
0.1NTU |
||
|
accurate |
<5% or 0.3NTU(which is bigger) |
||
|
Protection level |
IP68 |
||
|
temperature range |
0 ~ 50℃ |
||
|
Output |
Support RS-485, MODBUS protocol |
||
|
Probe cable length |
10 m, customizable 5 m, 15 m and 30 m cable |
||
|
Power supply |
DC 5~12V, current <50mA |
DC 5~12V, current <50mA (when not cleaned) |
|
|
size |
Φ22mm*120mm |
Φ33mm*156mm |
|
|
Self-cleaning system |
No |
Yes |
|
