Place of Origin:
CHINA
ब्रांड नाम:
KACISE
प्रमाणन:
CE
Model Number:
GXPS140
वीडियो
वीडियो
वीडियो
वीडियो

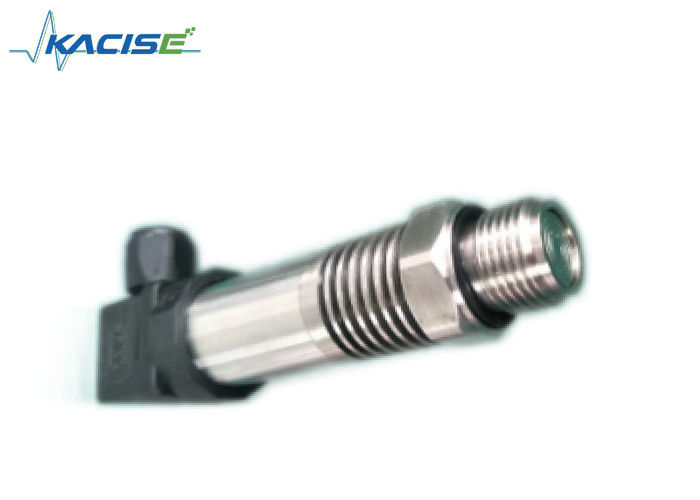

High temperature Hirschman connector pressure sensor water tank pressure transmitter MEMS diaphragm 4-20mA output
Introduction
GXPS140 micro pressure transducer uses micro machining technology to integrate piezoresis-sensitive element, and customer required micro package. The size and dimension could be designed to meet customer’s special requirement. Superiorities are: micro-shape, strong output signal, high temperature excellent dynamic and static character, reliable stability.
Application
Feature of Piezoresistive mems pressure sensor for medical applications
Dimensions in mm
Specification of Piezoresistive mems pressure sensor for medical applications
| Spec. | Value |
| Measurement Medium | Non-corrosive liquids that can compatible with silicon, stainless steel, glass, insulation adhesive or gas. |
| Pressure range | -100KPa～0～10KPa～1MPa～10MPa…100MPa |
| Accuracy | ±0.2%F.S, ±0.5%F.S. |
| Power supply | 0.5-2.0mA, 5-12VDC |
| Output signal | About 100mV |
| Transmitter output | Power: 24VDC(±15VDC), Output: 0-5VDC,4-20mA optional |
| Stability | ±0.2%F.S/Year, |
| working temperature |
-40～125℃ (High temperature with water-cooling structure can withstand 1200℃) |
| Response frequency | 50-500KHZ |
| Insulation | ≥500M Ω@100V |
| Overload pressure | 200%FS |
| Rupture pressure | 500%FS |
| Relative humidity | 0%~95% |
| Electrical connection | Fixed cable, Aviation plug |
| Pressure port | M3, M4, M5, M6, M10 or others |
| Pressure type | Gauge, Sealed gauge, Absolute gauge, |
| IP rating | IP65 |
Ordering information
GXPS140- Pressure Type-Range –Accuracy-Pressure port-Electric connection- Signal output-working temperature- Power supply
