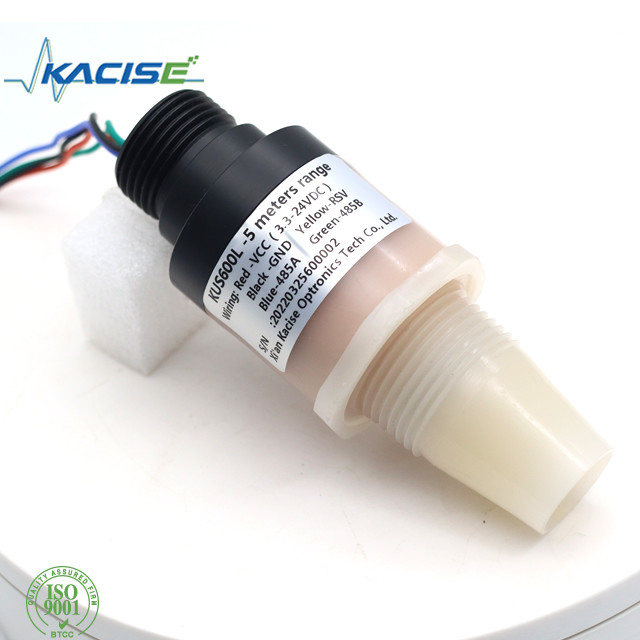

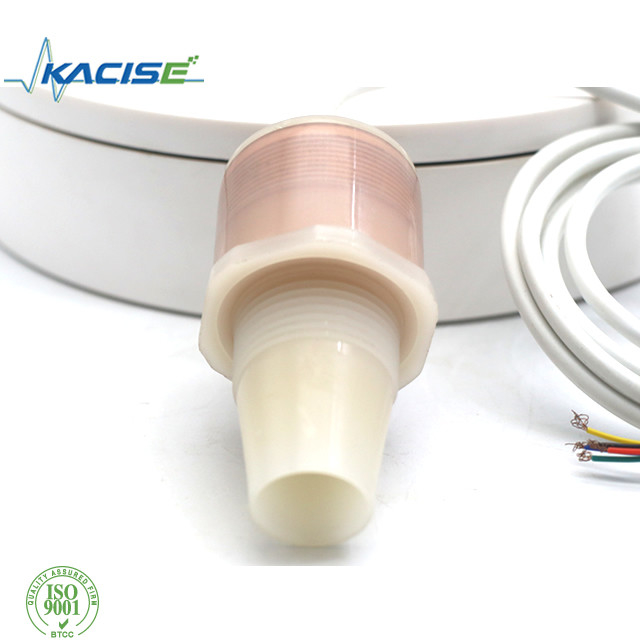

IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe

Wireless Ultrasonic Transducer Probe

IP68 Ultrasonic Transducer Probe

3.3V Ultrasonic Distance Probe

Place of Origin:

China (Mainland)

ब्रांड नाम:

Kacise

Model Number:

KUS series

हमसे संपर्क करें

बोली मांगें

IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe

उत्पाद का विवरण

Product:

Ultrasonic Distance Sensor

Detection Range:

300mm~3000mm

Transducer frequency:

approx. 220kHz

Output:

RS485 + 4-20mA/0-10V

Input power:

3.3V~24V

IP grade:

IP68

प्रमुखता देना:

Wireless Ultrasonic Transducer Probe

IP68 Ultrasonic Transducer Probe

3.3V Ultrasonic Distance Probe

भुगतान और शिपिंग की शर्तें

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

संबंधित उत्पाद

वीडियो

24V 3000mm RS485 0.2mA Ultrasonic Transducer Sensor with response time ＜50ms

सबसे अच्छी कीमत पाएं

वीडियो

Waterproof NPT PTFE RS485 Output Ultrasonic Water Level Sensor Low Power Consumption

सबसे अच्छी कीमत पाएं

वीडियो

6V Ultrasonic Water / Fuel Tank Level Sensor RS485 5m High Accuracy Liquid Level Meter

सबसे अच्छी कीमत पाएं

वीडियो

KUS600 5 Meter RS485 Low Power Level Measurement Sensor IP68

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

KUS600B 3.3V input power RS485 output low consumption for wireless transmission ultrasonic distance transmitter

1. Electronic interface and signals definition

Electrical connections and signal definitions

Line order	Colour	Definition
1	Red	Power is positive
2	Black	power return ground
3	Yellow	Analog output, voltage output, current output switch output
4	Blue	RS485 A+ or uart TXD
5	Green	RS485 B- or uart RXD

3. Dimensions

Unit in the diagram is mm

IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe 0

4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

KUS	model	output	range	describe
	630	Product series model
	Custom made
		0-10V	Analog 0-10V output
		0-5V	Analog 0-5V output
		0-3V	Analog 0-3V output
		4-20mA	Analog 4-20mA output
		SW	Switch output
		Uart	Uart serial output MODBUS RTU protocol
		RS485	RS485 output MODBUS RTU protocol
			XX m	XX m means the maximum measurement distance (default 10m)
KUS	550	RS485	2m
