Place of Origin:
CHINA
ब्रांड नाम:
KACISE
प्रमाणन:
CE
Model Number:
KPC150

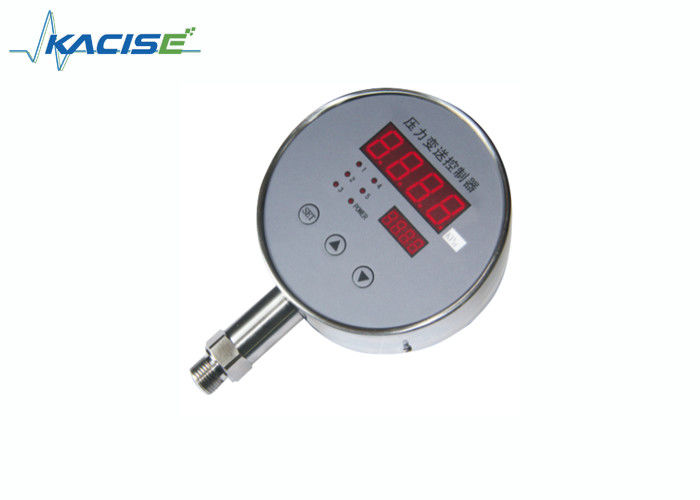

KPC150 5 Way Dual LED Display 24V Or 220V Input 4-20mA Or RS485 For Network Optional Intelligent Pressure Controller
Introduction
The KPC150 intelligent pressure controller is an intelligent digital pressure measurement and control product that integrates pressure measurement, display, output, and five-way control. Stainless steel joint, diffused Silicon pressure core body, whole digital circuit board, display intuitive, simple operation, safe and reliable, switch point set on site. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the pressure of the fluid medium is measured and controlled, and the output(4-20mA) and RS485 network can be transmitted.
Application
Dimensions in mm
| Pressure range | -0.1...0~100Mpa | Accuracy | ≤0.5%F.S |
| Stability | ≤0.1%/year | Overload | ≤200%F.S |
| Load capacitor | 24VDC 1.2A/220VAC 3A | Cable way | Cable pin |
| Display | 0.8’ + 0.36’ digital tube | Power supply | 24VDC/220VAC |
| Response time | <30ms | Switch type | 5 way relay output |
Specification
| KPC150 | pressure controller | ||||
| Range | Pressure range: -0.1MPa...0～100MPa | ||||
| ［0～X］bar | X: Actual pressure range | ||||
| Code | Output | ||||
| I | 4-20mA | ||||
| R | RS485 | ||||
| Code | Power Supply | ||||
| D | 24VDC | ||||
| A | 220VAC | ||||
| Code | Thread connection | ||||
| G12 | G1/2 | ||||
| G14 | G1/4 | ||||
| M20 | M20*1.5 | ||||
Our Company
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
