Place of Origin:
China
ब्रांड नाम:
Kacise
Model Number:
KSCCP21D
वीडियो
वीडियो
वीडियो

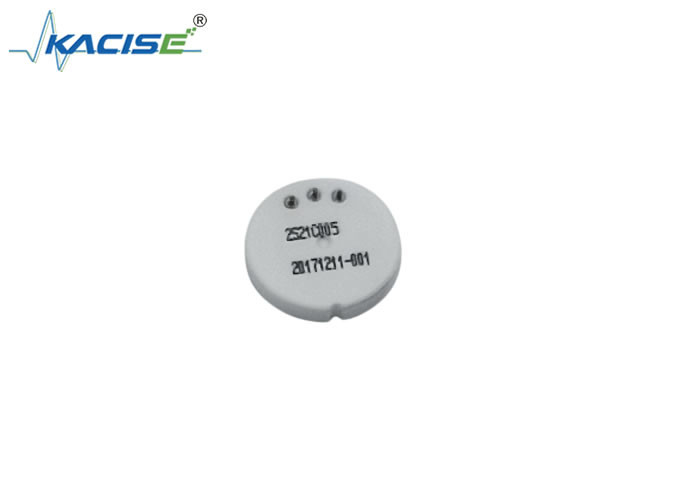

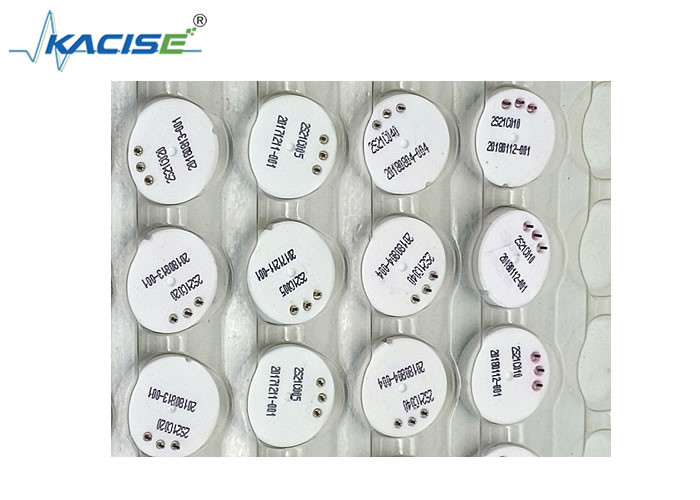

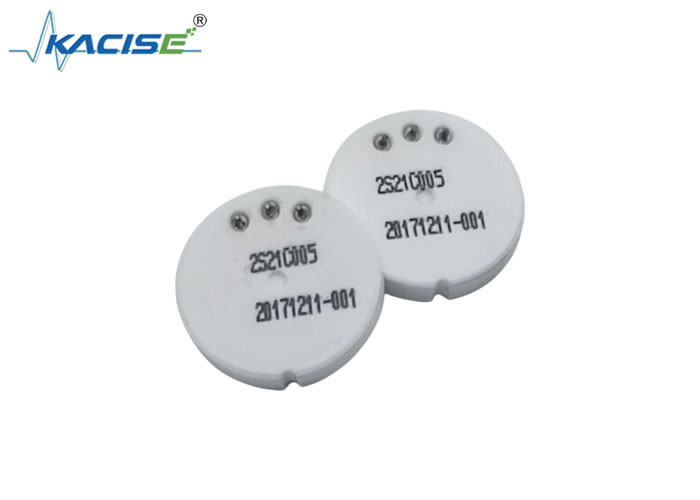

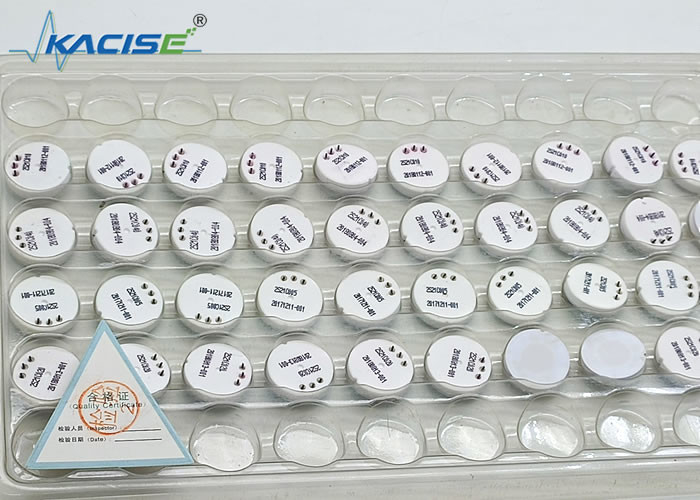

Capacitive Ceramic Pressure Element– CCP Series
Operating Temp. : -40~150℃
FEATURES
● Ceramic capacitor type
● Measurement without intermediary liquid
● Fast response and high accuracy
● High reliability
● AEC-Q200D verified
APPLICATIONS
● For automotive oil pressure measurement, refrigerant pressure measurement of air conditioner, etc.
SHAPE AND DIMENSIONS
SPECIFICATIONS
| Part No. | Pressure range(Mpa) | Pressure range | Over pressure/times of norminal value | Burst pressure/times of norminal value | Capacitor value without load | Thickness |
| KSCCP21DX100-E1 | 0.1 | 14.5 | 3 | 5 | 15-25 | 4.06±0.1 |
| KSCCP21DX200-E1 | 0.2 | 29 | 3 | 5 | 15-23 | 4.06±0.1 |
| KSCCP21DX500-E1 | 0.5 | 72.5 | 3 | 5 | 17-32 | 4.22±0.1 |
| KSCCP21DX1000-E1 | 1 | 145 | 3 | 5 | 15-22 | 4.34±0.1 |
| KSCCP21DX2000-E1 | 2 | 290 | 3 | 5 | 15-24 | 4.42±0.1 |
| KSCCP21DX4000-E1 | 4 | 580 | 3 | 5 | 15-24 | 4.57±0.1 |
| KSCCP21DX5000-E1 | 5 | 725 | 3 | 5 | 15-24 | 4.70±0.1 |
| KSCCP21DX8800-E1 | 8.8 | 1276 | 3 | 5 | 20-32 | 6.53±0.1 |
*X: G: Sealed Gage, A: Absolute
Temperature character
Techinical parameters
| Pressure range | 0.1～10Mpa |
| Response time | <1mS |
| Total error(Nu-linertiy+hysteresis+repeatibility) | 0.1...0.2FS% |
| Isolation | >4KV |
| Isolation resistor@100VDC | >500M |
| Temperature drift | ±0.01 %FS/℃ |
| Long term stability | <0.1% FSO/年 |
| Working temperature | -40～125℃ |
