Place of Origin:
Shaanxi, China
ब्रांड नाम:
KACISE
Model Number:
KWS series water quality sensor

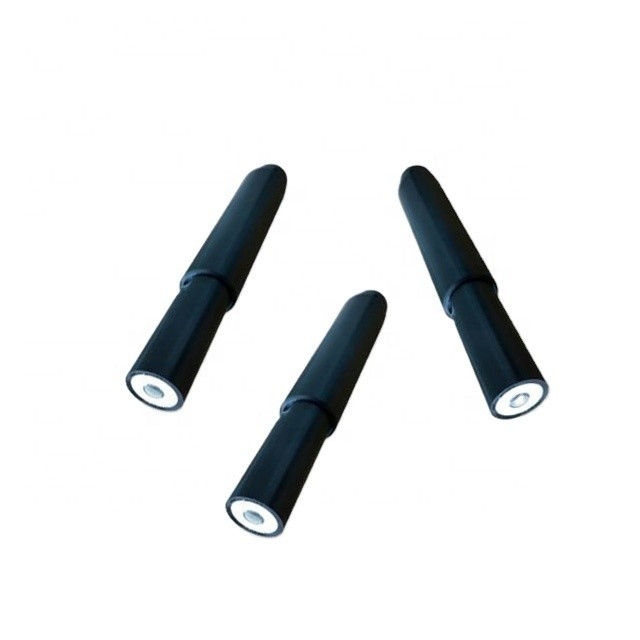

Online Digital pH Sensor
1. Introduction
Kacise digital pH sensor with industrial wire electrode, flat front end Structure, easy to clean. Built-in temperature sensor for automatic temperature compensation, Use an online long-term monitoring environment. The sensor uses RS485 output to support, Modbus enables network and system integration without a controller.
2. Feature
Digital sensor, RS-485 output, support MODBUS Unaffected by transmission distance for better stability
Built-in temperature sensor, automatic temperature compensation
3.Technical Specifications
Item | Parameters |
Measuring range | 0-14pH |
Accuracy | 0. 1pH |
Resolution | 0.01 |
Protection level | IP68 |
Deepest depth | Underwater 10 meters |
Temperature range | 0 ~ 50°C |
Output | Support RS-485, MODBUS protocol |
Power supply | DC 5V~15V, current<50mA |
Size | Φ26*167.5mm |
Installation | Drop in |
Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable |
Casing material | POM |
We supply high quality Online Digital pH Sensor hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
