Name: Sensor Holder for pH/ORP and DO Analyzers with 2-inch Pipe Mounting and 0 to 80℃ Temperature Range for Max 3m Submersion Depth
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FH350G
Price: 5,000.00 USD
Availability: InStock

घर > उत्पादों > जल गुणवत्ता सेंसर >

Sensor Holder for pH/ORP and DO Analyzers with 2-inch Pipe Mounting and 0 to 80℃ Temperature Range for Max 3m Submersion Depth

2-inch pipe mounting Sensor Holder

0 to 80℃ temperature range pH/ORP Holder

Max 3m submersion depth DO Holder

ब्रांड नाम:

Yokogawa

मॉडल संख्या:

FH350G

हमसे संपर्क करें

बोली मांगें

Sensor Holder for pH/ORP and DO Analyzers with 2-inch Pipe Mounting and 0 to 80℃ Temperature Range for Max 3m Submersion Depth

उत्पाद का विवरण

बढ़ते:

2-इंच पाइप बढ़ते ऊर्ध्वाधर या क्षैतिज

तापमान मापना:

0 से 50 ℃ (पीवीसी), 0 से 80 ℃ (पॉलीप्रोपाइलीन)

प्रमुखता देना:

2-inch pipe mounting Sensor Holder

0 to 80℃ temperature range pH/ORP Holder

Max 3m submersion depth DO Holder

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

पैकेजिंग विवरण

प्रत्येक इकाई में व्यक्तिगत बॉक्स होता है और सभी बॉक्स मानक पैकेज या ग्राहकों के अनुरोधों में पैक कि

प्रसव के समय

5-8 काम के दिन

भुगतान शर्तें

मनीग्राम, वेस्टर्न यूनियन, टी/टी, डी/पी, डी/ए, एल/सी

आपूर्ति की क्षमता

प्रति सप्ताह 1000 टुकड़ा/टुकड़े परक्राम्य

संबंधित उत्पाद

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

सबसे अच्छी कीमत पाएं

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

सबसे अच्छी कीमत पाएं

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

सबसे अच्छी कीमत पाएं

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

86--17719566736

अब संपर्क करें

उत्पाद का वर्णन

Sensor Holders for pH/ORP, DO and MLSS Analyzers

Yokogawa provides several types of holders with optional cleaning attachments, enabling customers to build reliable and easy-to-maintain measuring systems by selecting the appropriate holders and cleaners for specific application conditions.

Holder Types Overview

Submersion Type Holders (PH8HS, PH8HSF, DOX8HS): Directly immersed in reaction tanks or measuring baths
Flow-Through Type Holders (PH8HF, PH8HFF, FH350G): Installed along pipelines for production line or wastewater measurement
Suspension Holder (HH350G): Features guide pipe for easy electrode maintenance
Float Ball Holders (PB350G, PB360G): Designed for fluctuating liquid levels with reduced maintenance requirements

Detailed Specifications

1. Guide-Pipe PH8HG

Applicable sensors	General pH Sensor PH8ERP, PH8EFP General ORP Sensor OR8ERG, OR8EFG Dissolved Oxygen Sensor DO30G MLSS Sensor SS300G
Mounting	2-inch pipe mounting vertical or horizontal
Material	Holder: Polypropylene or PVC Mounting bracket: Galvanized iron or stainless steel (equivalent to 304SS)
Measuring temperature	0 to 50℃ (PVC), 0 to 80℃ (Polypropylene)
Weight	Holder: Approx. 2 kg Mounting bracket: Approx. 1 kg/set

2-A. Submersion Type Holder PH8HS

Applicable sensors	General pH Sensor PH8ERP, PH8EFP, PH8ERG, PH8EFG Special pH Sensor HA405, DPA405, HF405 General ORP Sensor OR8ERG, OR8EFG Special ORP Sensor HA485, DPA485
Mounting	2-inch pipe mounting vertical or horizontal with 1 or 2 sets of mounting hardware
Cleaning method	Jet cleaning, brush cleaning or ultrasonic cleaning
Material	Holder: Polypropylene or stainless steel (equivalent to 316SS) Mounting bracket: Galvanized iron or stainless steel (equivalent to 304SS)
Weight	Holder: Approx. 0.5 to 2.2 kg (polypropylene), Approx. 1.5 to 11.5 kg (stainless steel) Mounting bracket: Approx. 1 kg/set
Measuring temperature	No Cleaning: -5 to 100℃ With Cleaning: -5 to 80℃
Measuring flow speed	2m/s or less
Measuring pressure	Submersion depth Max. 3m

2-B. Submersion Type Holder (Explosionproof Type) PH8HSF

Applicable sensors	General pH Sensor PH8ERP, PH8EFP, PH8ERG, PH8EFG General ORP Sensor OR8ERG, OR8EFG
Mounting	2-inch pipe mounting vertical or horizontal with 1 or 2 sets of mounting hardware
Cleaning method	Ultrasonic cleaning
Material	Holder: Polypropylene or stainless steel (equivalent to 316SS) Mounting bracket: Galvanized iron or stainless steel (equivalent to 304SS)
Construction	JIS flameproof type (for d2G4 gas)
Weight	Holder: Approx. 0.5 to 2.2 kg (polypropylene), Approx. 1.5 to 11.5 kg (stainless steel) Mounting bracket: Approx. 1 kg/set
Measuring temperature	-5 to 80℃
Measuring flow speed	2m/s or less
Measuring pressure	Submersion depth Max. 3m

Key Features by Holder Type

Submersion Type Holders: PH8HS, PH8HSF and DOX8HS

Available in stainless steel or polypropylene
Optional jet- or ultrasonic-cleaning device (unavailable for DOX8HS)
Optional flange fitting for PH8HS
Skewed mounting for DOX8HS to prevent influence from bubbles

Flow-Through Type Holders: PH8HF, PH8HFF and FH350G

Available in stainless steel or polypropylene
Optional jet- or ultrasonic-cleaning device (unavailable for FH350G)
Allows direct mounting to the pipeline

Suspension Holder: HH350G

Allows the electrode to be pulled up separately
Easy maintenance
Optional jet-cleaning device

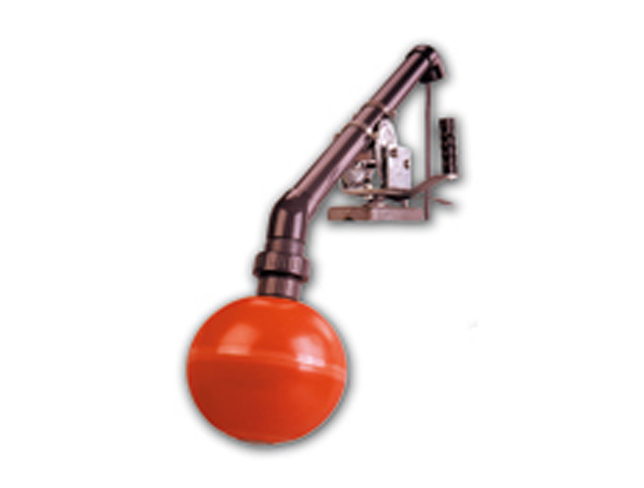

Float Ball Holders: PB350G and PB360G

Continuous stable measurement without effect from fluid level fluctuations
Reduces maintenance frequency
Easy-to-maintain design
Vertical type available for limited installation space
