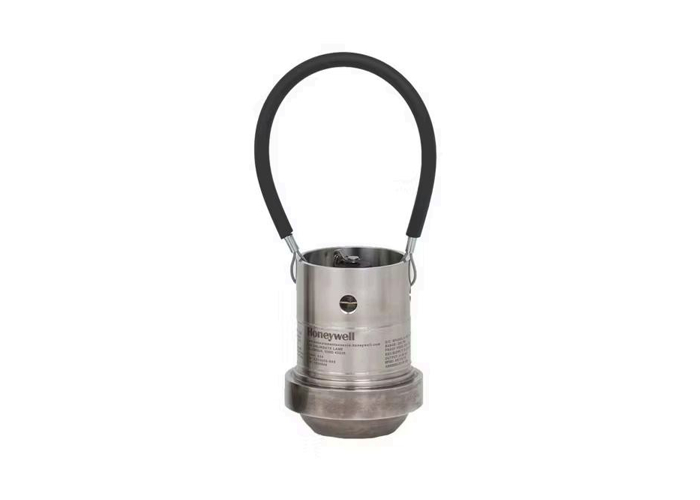

Name: Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: मॉडल 434
Price: 152.00 USD
Availability: InStock

घर > उत्पादों > सटीक दबाव सेंसर >

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

ब्रांड नाम:

Honeywell

मॉडल संख्या:

मॉडल 434

हमसे संपर्क करें

बोली मांगें

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

उत्पाद का विवरण

मानक एपर्चर.:

0 पीएसआई से 20,000 पीएसआई

शुद्धता:

±0.2 %एफएसएस बीएफएसएल

उत्पादन:

4 mA से 20 mA, 2-तार

तापमान, संचालन:

-40 डिग्री सेल्सियस से 125 डिग्री सेल्सियस [-40 डिग्री फारेनहाइट से 257 डिग्री फारेनहाइट]

तापमान, मुआवजा:

-40 डिग्री सेल्सियस से 85 डिग्री सेल्सियस [-40 डिग्री फारेनहाइट से 185 डिग्री फारेनहाइट]

गीला भाग:

इनकोनेल® 718 (एनएसीई अनुरूप)

प्रमुखता देना:

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

पैकेजिंग विवरण

प्रत्येक इकाई में व्यक्तिगत बॉक्स होता है और सभी बॉक्स मानक पैकेज या ग्राहकों के अनुरोधों में पैक कि

प्रसव के समय

5-8 काम के दिन

भुगतान शर्तें

एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

प्रति सप्ताह 1000 टुकड़ा/टुकड़े परक्राम्य

संबंधित उत्पाद

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

सबसे अच्छी कीमत पाएं

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

सबसे अच्छी कीमत पाएं

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

सबसे अच्छी कीमत पाएं

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

Honeywell Model 434 Wing Union Pressure Transducers

Standard aperture. 0 psi to 20,000 psi. ±0.2% full-scale accuracy.

Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They feature an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, providing hermetic integrity and minimizing media leakage.

Value to Customers

Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
Accurate: High accuracy option provides confidence in measured pressure values, particularly for smaller pressure changes, allowing precise drilling operation adjustments.
Availability and service: Global manufacturing and support enable quick delivery of customized products to meet project timelines.

Differentiators

High or standard accuracy capability meets tighter system requirements with lower error bands than comparable competitive models.
Shunt calibration option enhances configurability and flexibility - 1-wire shunt calibration is achievable with a single barrier application, helping minimize installation costs.
IEC Ex approval allows for use in hazardous areas in Asia-Pacific, EMEA, and by the U.S. Coast Guard.
Protective cage option available.
Welded construction for enhanced durability.

Part Numbers

Part Number	Description
060-P774-01	BP434EJ, 6, 1AC, 2AK, 6BF, 7AE, 10J:MODEL 434
060-P909-01-01	BP434EJ, 6, 1AC, 2AK, 6Z, 7AD, 9A, 10J:Model
060-R267-01	BP434DR, 6, 1AC, 2AK, 6BF, 7AE, 10J, 45E:Model
060-R310-01	BP434EL, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 434
060-R392-01	BP434EL, 6, 1AC, 2AK, 6A, 7AF, 10J:MODEL 434
