Name: GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: जीकेई सीरीज
Price: 152.00 USD
Availability: InStock

घर > उत्पादों > सटीक दबाव सेंसर >

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

IEC 20 mm mounting Safety Key-Operated Switch

IP66/67 rated Dual Entry Safety Switch

NEMA 1 4X 12 13 compliant GKE Series Safety Switch

ब्रांड नाम:

Honeywell

मॉडल संख्या:

जीकेई सीरीज

हमसे संपर्क करें

बोली मांगें

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

उत्पाद का विवरण

संपर्क सामग्री:

चांदी मिश्र धातु

एक्चुएटर कुंजी सामग्री:

स्टेनलेस स्टील

बिजली का संपर्क:

स्विच में प्रत्येक वायरिंग बिंदु के साथ 20 मिमी या 0.5-14 एनपीटी नाली एक थ्रेडेड टर्मिनल स्क्रू

संपर्क/स्विच विकल्प¹:

1NC/1NO धीमी क्रिया BBM, 1NC/1NO स्नैप क्रिया, 2NC धीमी क्रिया

संपर्क डिज़ाइन:

डबल ब्रेक, विद्युत रूप से अलग (Zb)

प्रमुखता देना:

IEC 20 mm mounting Safety Key-Operated Switch

IP66/67 rated Dual Entry Safety Switch

NEMA 1 4X 12 13 compliant GKE Series Safety Switch

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

पैकेजिंग विवरण

प्रत्येक इकाई में व्यक्तिगत बॉक्स होता है और सभी बॉक्स मानक पैकेज या ग्राहकों के अनुरोधों में पैक कि

प्रसव के समय

5-8 कार्य दिवस

भुगतान शर्तें

एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

प्रति सप्ताह 1000 टुकड़ा/टुकड़े परक्राम्य

संबंधित उत्पाद

वीडियो

Universal Precision Pressure Sensor Transmitter For Industry Process Control

सबसे अच्छी कीमत पाएं

वीडियो

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

सबसे अच्छी कीमत पाएं

वीडियो

Piezoresistance Core Precision Pressure Sensor Digital Output High Stability

सबसे अच्छी कीमत पाएं

वीडियो

GXPS800 Extreme Environment Heat Resistant ±0.1Accuracy Pressure Transmitter

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

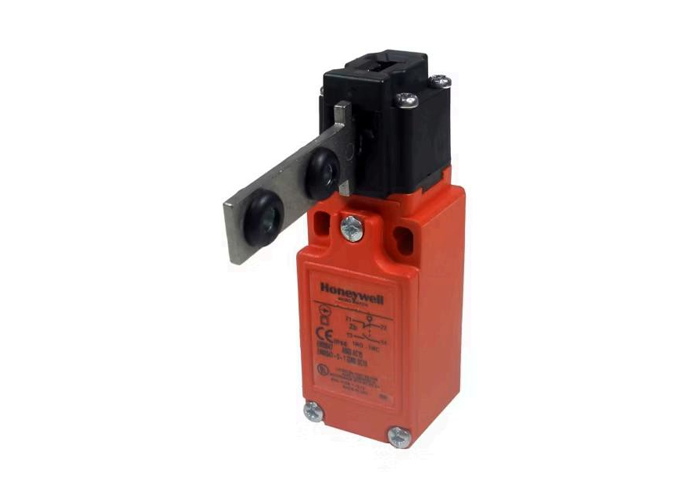

Honeywell GKE Series Safety Key-Operated Switch

Glass-filled polyester housing. IEC 20 mm mounting. cULus, CE, SIL3. IP66/67. NEMA 1, 4X (indoor), 12, 13. Silver contacts

The GKE Series safety key-operated switch provides enhanced reliability for safety hard guarding applications in a compact, cost-effective package. Featuring positive opening safety contacts and multiple contact configurations, the GKE's rotating head allows actuator engagement from five orientations. The switch features double insulation per IEC 60947-5-1, and has a choice of two standard actuators.

Key Features

Red switch body for easy safety recognition
20 mm to 22 mm mounting centers per EN50047 which accept M4 or #8 mounting hardware
Different contact options: 1NC (normally closed) and 1NO normally open) or 2NC
All NC contacts are positive opening
Actuator head 60947-5-1 3 specification
Actuator head can be indexed in any of four positions, in 90° increments
Switch chamber sealed to IP66/IP67 and NEMA 1, 4X (indoor), 12, 13
CE, CCC, and cULus certifications for global applications
Different threaded conduit options
Designed and agency evaluated, per SIRA, for safety functions up to and including a SIL3 level

Applications

Safety interlock for guards or doors on equipment and machinery
Designed for hinge or sliding guards or doors

Differentiation

Switch design with dual entry (side or top) for actuator key
Compact size of 31 mm L × 33 mm W × 96 mm H [1.2 in L × 1.3 in W × 3.8 in H]
Rigid or flexible stainless steel actuator keys

Available Models

Part Number	Description
GKEA01L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Snap Action, 12 NPT, Plastic, Silver Contacts
GKEA03L	SAFETY LIMIT SWITCH-HEAVY DUTY
GKEA06L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 2NC Direct Opening, Slow Action, 12 NPT, Plastic, Silver Contacts
GKEC01L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Snap Action, 20 mm, Plastic, Silver Contacts
GKEC03L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Slow Action, Break-Before-Make (B.B.M.), 20 mm, Plastic, Silver Contacts

TABLE 1. PERFORMANCE SPECIFICATIONS

Characteristic	Parameter
Description	Dual entry key-operated safety interlock switch
Agency certifications	CE, DOC A340 cULus, File E37138 CCC, Certificate # 2011010305489827 SIL, Reference SIRA FSP 09009/02
Housing material	Glass-filled thermoplastic polyester
Actuator key material	Stainless steel
Electrical connection	20 mm or 0.5-14 NPT conduit with each wiring point in switch a threaded terminal screw
Contact/switch options	1NC/1NO slow action BBM, 1NC/1NO snap action, 2NC slow action
Contact design	Double break, electrically separated (Zb)
Contact material	Silver alloy
Electrical ratings	See table 2
Utilization category	1NC/1NO: AC-15, A600; DC13-Q300 2NC: AC-15, A300; DC13-Q300
Rated operational voltage (Ue)	1NC/1NO: 120 Vac, 240 Vac, 600 Vac, 125 Vdc, 250 Vdc 2NC: 120 Vac, 240 Vac, 125 Vdc, 250 Vdc
Rated operational current (Ie)	1NC/1NO: 6 A, 3 A, 1.2A, 0.55, 0.27 2NC: 6 A, 3 A, 0.55 A, 0.27 A
Thermal current (Ith)	10 A
Rated insulation (Ui)	1NC/1NO: 600 V 2NC: 300 V
Rated impulse withstand voltage (Uimp)	2500 V
Short circuit protection device (SCPD)	Class J fuse, 10 A/600 V
Pollution degree	3
Environmental sealing	IP 66/67; NEMA 1, 4X (Indoor), 12, 13
Operating temperature	-25° C to 85° C [-13° F to 185° F]
Shock	50 g per IEC 60068-2-27
Vibration	10 g per IEC 60068-2-6
MCTF (Mechanical life)	15,930,000 cycles
MCTF (Electrical life)	>25,000 cycles with single-sided confidence limit of 75%
SIL Capability	SIL3 capable with HFT=1 with reference to IEC 61508-2:2010 functional safety
Proof test interval	1 year

TABLE 2. ELECTRICAL RATINGS

Designation and Utilization Category	Rated Operational Current Ie (A) at Rated Operational Voltage Ue (V)	24 V	120 V	240 V	380 V	480 V	500 V	600 V
AC-15	A300	-	6 A	3 A	-	-	-	-
AC-15	A600	-	6 A	3 A	1.9 A	1.5 A	1.4 A	1.2 A
DC-13	Q300	2.8 A	0.55 A	0.27 A	-	-	-	-
