उत्पत्ति के प्लेस:
चियान
ब्रांड नाम:
KACISE
प्रमाणन:
CE
मॉडल संख्या:
KMPW520

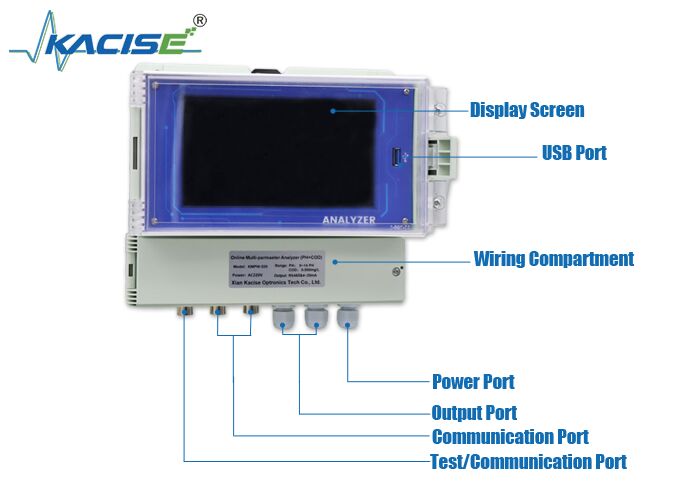

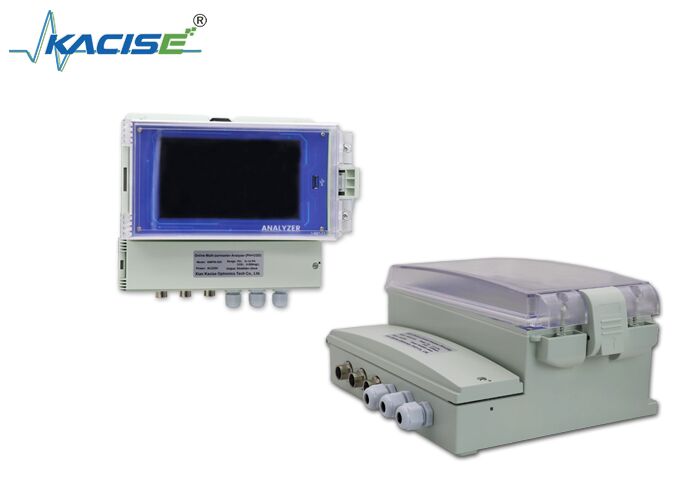

The KMPW520 Multi-Parameter Water Quality Analyzer is a next-generation monitoring system featuring digital sensors for flexible parameter combinations. Designed for industrial applications, it offers comprehensive control capabilities with multiple analog and relay channels, supporting Modbus-RTU protocol for remote data transmission.
Temperature, PH, ORP, conductivity, TDS, salinity, dissolved oxygen, residual chlorine, dissolved ozone, turbidity, TSS, sludge concentration, hardness, ion concentration, Resistivity, COD, BOD, etc.
Maximum 6 parameters in free combination (examples: PH+ORP+conductivity+DO+residual chlorine+turbidity)
| Specification | Details |
|---|---|
| Power Supply | AC 220V |
| Dimensions | 223mm × 200mm × 120mm |
| Weight | 1.51kg |
| Installation | Wall-mounted |
| Operating Conditions | 0-60℃, humidity ≤90% |
| Protection Level | IP65 |
| Input Interface | 6-channel RS485 with 12V power supply (1A total capacity) |
| Analog Output | 2-channel 4-20mA (750Ω load capacity per channel) |
| Relay Control | 6 channels (3A load capacity per channel) |
| Digital Output | 2-channel RS485 (Modbus-RTU protocol) |
| Display | 7.0-inch LCD (800×480 resolution), capacitive touch |
