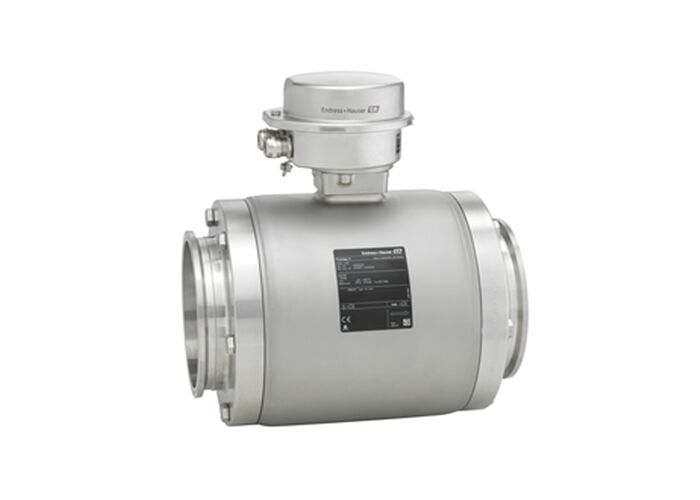

Proline Promag H 100 Electromagnetic Flowmeter
Specialist for hygienic applications with an ultra-compact transmitter. Multivariable measurement of flow, temperature and conductivity. Dedicated to demanding applications in the food and beverage as well as life sciences industries.
Field of Application
Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making Promag H 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.
Key Benefits
- Multivariable measurement for flow, temperature and conductivity
- Flexible installation concept - numerous hygienic process connections
- Energy-saving flow measurement - no pressure loss due to cross-section constriction
- Space-saving transmitter - full functionality on the smallest footprint
- Time-saving local operation without additional software and hardware - integrated web server
- Integrated verification - Heartbeat Technology
- Maintenance-free - no moving parts
Technical Specifications
| Measuring Principle |
Electromagnetic |
| Nominal Diameter Range |
DN 2 to 150 (¹⁄₁₂ to 6) |
| Measuring Range |
0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) |
| Max. Measurement Error |
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s) |
| Medium Temperature Range |
-20 to +150 °C (-4 to +302 °F) |
| Ambient Temperature Range |
-40 to +60 °C (-40 to +140 °F) |
| Max. Process Pressure |
PN 40, Class 150, 20K |
| Degree of Protection |
Standard: IP66/67, type 4X enclosure
Option: IP69 |
Measured Variables
Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity
Wetted Materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
Device Features
Sensor Features
- Flexible installation concept - numerous hygienic process connections
- Energy-saving flow measurement - no pressure loss due to cross section constriction
- Maintenance-free - no moving parts
- Integrated temperature measurement
- Sensor housing made of stainless steel (3-A, EHEDG)
- Wetted materials CIP, SIP cleanable
Transmitter Features
- Space-saving transmitter - full functionality on the smallest footprint
- Time-saving local operation without additional software and hardware - integrated web server
- Integrated verification - Heartbeat Technology
- Robust, ultra-compact transmitter housing
- High degree of protection: IP69
- Local display available
Approvals and Certifications
Hazardous Area: ATEX, IECEx, cCSAus, INMETRO, EAC
Product Safety: CE, C-tick
Metrological: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Marine: LR approval, DNV approval, ABS approval, BV approval
Pressure: PED, CRN
Material: 3.1 material
Hygienic: EHEDG, 3-A, liner and seals acc. to FDA, cGMP
