ब्रांड नाम:
Endress+Hauser
प्रमाणन:
CE
मॉडल संख्या:

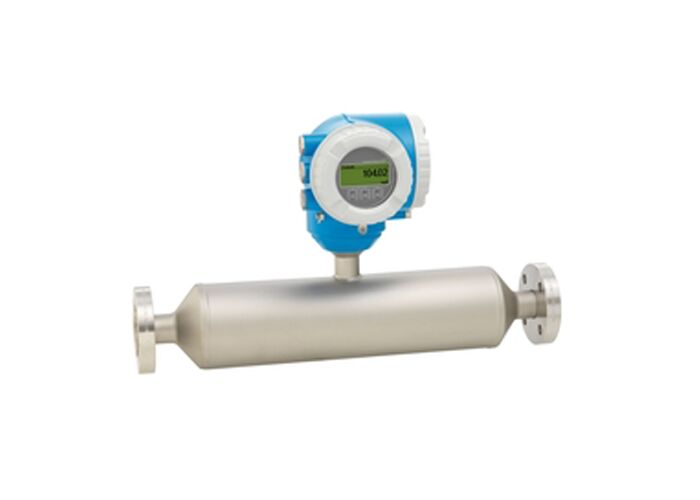

प्रोलाइन प्रोमास I 300
| Measuring Principle | Coriolis |
| Measured Variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity |
| Nominal Diameter Range | DN 8 to 80 (⅜ to 3") |
| Measuring Range | 0 to 180,000 kg/h (0 to 6,600 lb/min) |
| Medium Temperature | -50 to +150 °C (-58 to +302 °F) |
| Max Process Pressure | PN 100, Class 600, 63K |
| Mass Flow (Liquid) | ±0.10% |
| Volume Flow (Liquid) | ±0.10% |
| Mass Flow (Gas) | ±0.50% |
| Density (Liquid) | ±0.0005 g/cm³ |
| Measuring Tube | Titanium grade 9 |
| Connection | Titanium grade 2 |
| Ambient Temperature | Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F) |
| Degree of Protection | IP66/67, type 4X enclosure IP69 |
| Sensor Housing | 1.4301/1.4307 (304L), corrosion resistant |
| Transmitter Housing | AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic design |
| Outputs | 3 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch output, Relay output |
| Inputs | Status input, 4-20 mA input |
| Digital Communication | HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP, PROFINET, Ethernet/IP, OPC-UA |
| Power Supply | DC 24 V, AC 100-230 V, AC 100-230 V / DC 24 V (non-hazardous area) |
