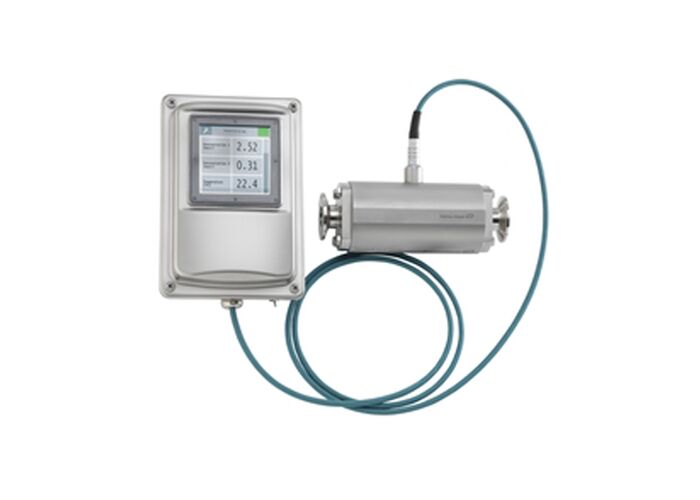

Teqwave H – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

उत्पत्ति के प्लेस:

स्विट्ज़रलैंड

ब्रांड नाम:

Endress+Hauser

प्रमाणन:

हमसे संपर्क करें

बोली मांगें

Teqwave H – Ultrasonic concentration meter

उत्पाद का विवरण

प्रक्रिया तापमान:

0 से 120°C (32 से 248°F)

प्रक्रिया दबाव:

अधिकतम. 20 डिग्री सेल्सियस पर 16 बार (68 डिग्री फारेनहाइट पर 232 पीएसआई)

पूर्व प्रमाणीकरण:

गैर-खतरनाक क्षेत्र

प्रवेश संरक्षण:

सेंसर: IP67, IP69 वैकल्पिक

प्रमुखता देना:

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

पैकेजिंग विवरण

प्रत्येक इकाई में व्यक्तिगत बॉक्स होता है और सभी बॉक्स मानक पैकेज या ग्राहकों के अनुरोधों में पैक कि

प्रसव के समय

5-8 कार्य दिवस

भुगतान शर्तें

एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

प्रति सप्ताह 1000 टुकड़ा/टुकड़े परक्राम्य

संबंधित उत्पाद

Proline Prosonic Flow E 100 ultrasonic flowmeter

सबसे अच्छी कीमत पाएं

Proline Prosonic Flow G 300 ultrasonic flowmeter

सबसे अच्छी कीमत पाएं

Proline Prosonic Flow G 500 ultrasonic flowmeter

सबसे अच्छी कीमत पाएं

Proline Prosonic Flow I 400 ultrasonic flowmeter

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

Teqwave H – Ultrasonic Concentration Meter

Inline device with best-in-class hygienic design - plug and play for food and beverage processes. High accuracy and repeatability with continuous quality monitoring of beverages and in cleaning processes.

Field of Application

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. The device provides highly accurate in situ concentration measurement with a hygienic design, reducing operational expenditure by monitoring multiple parameters simultaneously.

Key Benefits

High accuracy and repeatability - concentration calculation with latest algorithms
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Full transparency - constant monitoring of product quality without sampling
Highest process safety - reliable metering due to robust, maintenance-free sensor
Customized usage - innovative application concept, expandable for changing measuring tasks
Simplified process control - user-friendly operation and clear status visualization
Local data backup - integrated data storage for measured values up to 7.5 years

Technical Specifications

Measuring Principle	Ultrasonic concentration
Measured Variables	Concentration, sound velocity, temperature, acoustic density, dispersion
Nominal Diameter	DN 25 (1" DIN and ANSI)
Design	Inline, hygienic
Process Temperature	0 to 120°C (32 to 248°F)
Process Pressure	max. 16 bar at 20°C (232 psi at 68°F)
Power Supply	DC 24V ±20%

Measurement Accuracy

Acoustic Density	±0.01 g/cm³
Temperature	±0.5 K
Sound Velocity	±2 m/s

Measuring Ranges

Concentration	According to concentration app data sheet, maximum 0 to 100%
Sound Velocity	600 to 2000 m/s
Temperature	0 to +100°C (32 to +212°F)
Acoustic Density	0.7 to 1.5 g/cm³

Device Features

Sensor Features

Nominal diameter: DN 25 (1")
Sensor housing made of stainless steel (3-A, EHEDG)
Accurate and independent of flow profile
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Highest process safety - reliable metering due to robust, maintenance-free sensor

Transmitter Features

Industry-compliant, easy installation via DIN rail and pipe mounting set
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP outputs
Customized usage - innovative application concept
Local data storage for measured values up to 7.5 years

Materials & Certifications

Wetted Materials	Stainless steel 1.4404 (316L)
Transmitter Housing	Anodized aluminium and glass, optional 1.4301 and plastic
Ingress Protection	Sensor: IP67, IP69 optional Transmitter: IP40, optional IP67
Product Safety	CE, UKCA, RCM
Ex Certification	Non-hazardous area
