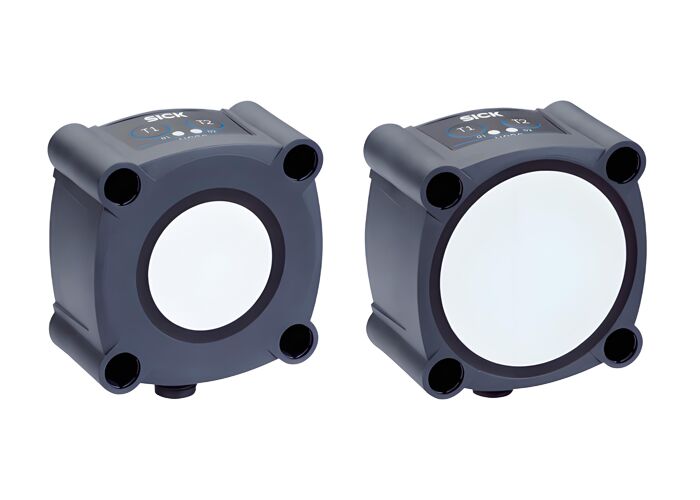

ब्रांड नाम:
SICK
मॉडल संख्या:
यूसी30
| Category | Details |
|---|---|
| Measuring range | Operating range: 350 mm ... 6,000 mm (depends on variant) Limiting range: 5,000 mm / 8,000 mm (depends on variant) |
| Resolution | ≥ 0.18 mm |
| Repeatability | ± 0.15 % |
| Response time | 180 ms ... 240 ms ¹ 180 ms ... 240 ms |
| Output time | 43 ms ... 60 ms (depends on variant) |
| Switching frequency | 4 Hz / 3 Hz (depends on variant) |
| Analog output | 4 mA ... 20 mA, ≤ 500 Ω ² / 0 V ... 10 V, ≥ 100,000 Ω |
| Digital output | Type: PNP / NPN / push-pull: PNP/NPN (depends on variant) |
| IO-Link | ✓, IO-Link V1.1 |
| Enclosure rating | IP65 / IP67 |
| Sending axis | Straight |
| Ambient temperature, operation | -25 °C ... +70 °C |
| Product variant | Part no. | Min. measuring range | Max. measuring range | Communication interface | Type of digital output | Type of analog output | Measuring frequency | Switching frequency | Response time |
|---|---|---|---|---|---|---|---|---|---|
| UC30-21416B | 6068452 | 350 mm | 3400 mm | IO-Link | push-pull: PNP/NPN | - | 120 kHz | 4 Hz | 180 ms |
| UC30-214164 | 6054713 | 350 mm | 3400 mm | - | NPN | - | 120 kHz | 4 Hz | 180 ms |
| UC30-21516B | 6068453 | 600 mm | 6000 mm | IO-Link | push-pull: PNP/NPN | - | 80 kHz | 3 Hz | 240 ms |
| UC30-215163 | 6054716 | 600 mm | 6000 mm | - | - | Current output, voltage output | 80 kHz | - | 240 ms |
| UC30-214163 | 6054712 | 350 mm | 3400 mm | - | - | Current output, voltage output | 120 kHz | - | 180 ms |
| UC30-215162 | 6054715 | 600 mm | 6000 mm | - | PNP | - | 80 kHz | 3 Hz | 240 ms |
| UC30-215164 | 6054717 | 600 mm | 6000 mm | - | NPN | - | 80 kHz | 3 Hz | 240 ms |
| UC30-214162 | 6054711 | 350 mm | 3400 mm | - | PNP | - | 120 kHz | 4 Hz | 180 ms |
