Place of Origin:
China (Mainland)
ब्रांड नाम:
KACISE
Model Number:
KPC Series
वीडियो
वीडियो

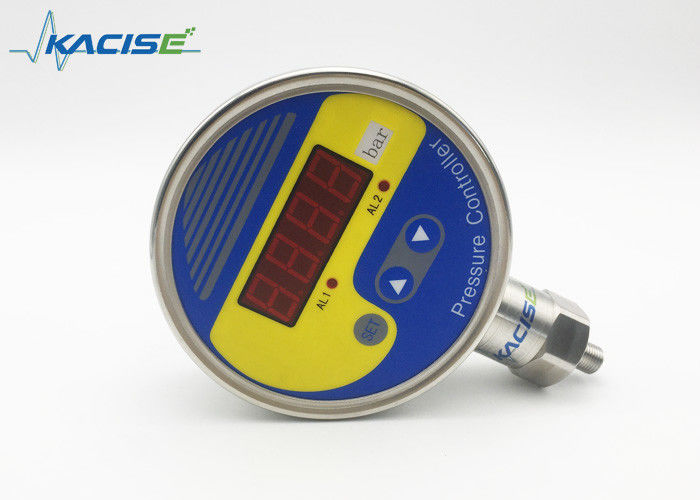

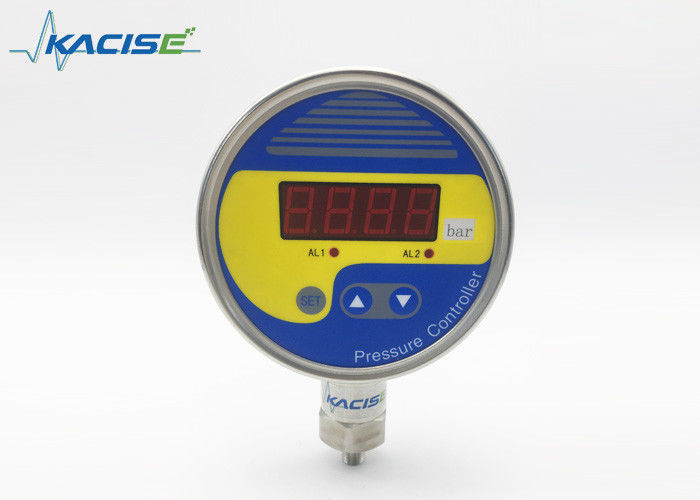

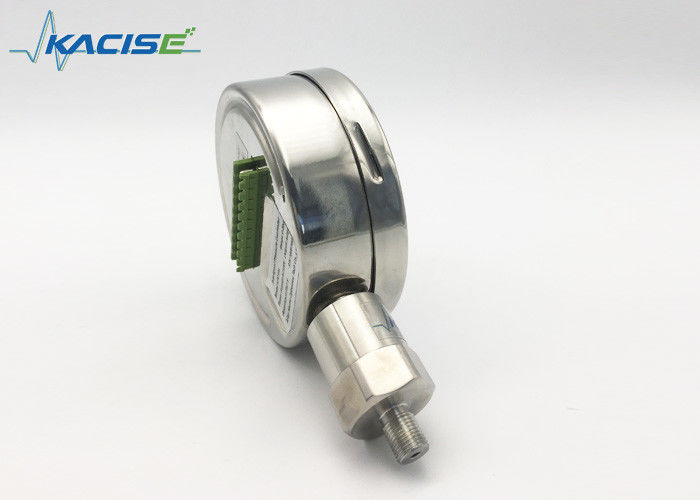

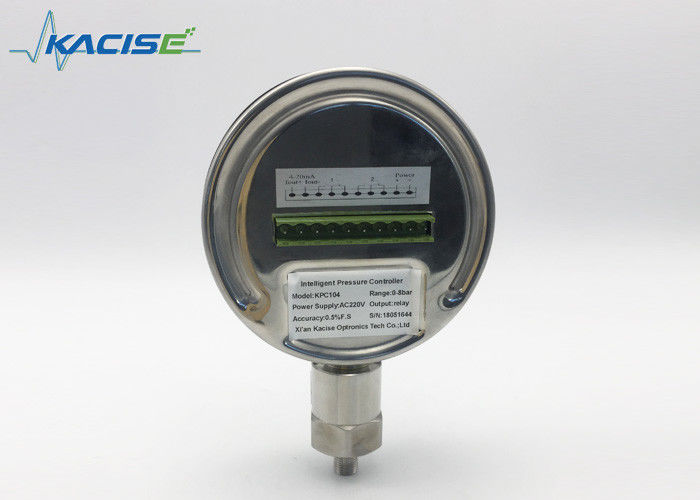

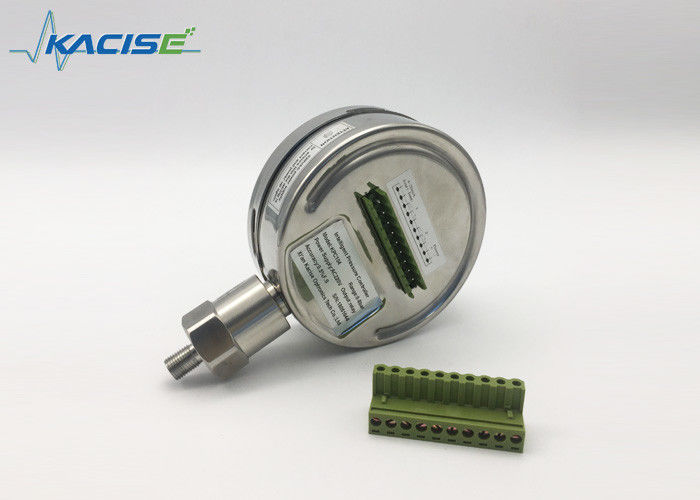

This is an intelligent digital displayed product for pressure test and controll. It has a complete electronic structure. Oil-filled piezo-restive pressure sensor with diaphragm is applied in the front part. The processed signals control two switches then to test & control the pressure. With flexible application, easy debugging and high reliability, this product is widely used applied to test & control the pressure of fluid medium in many industries including areas of hydroelectricity,city water,oil,chemical,machinery hydraulic system etc.
Parameter
| Pressure range | -0.1~0~100MPa | Accuracy | 0.5%F.S. |
| Over load | 200% | Pressure type | Gauge |
| Liability | ≤0.1% /year | Power | 24VDC or 220VAC |
| Display | 0.56" LED | Display range | -1999~9999 |
| Response time | <30ms | Ambient temperature | -20℃~70℃ |
| Relative humidity | ≤80% | Wetted part | SS304 |
Advantage
1, Your inquiry will be replied in 24hours.
2, Well-trained and experienced staffs to answer all your enquires in fluent English.
3, OEM&ODM, we can help you to design and your request will be put into product.
4, Distributorship are offered for your unique design and some our current models.
5, Protection of your sales area, ideas of design and all your private information.
6, Discounts are offered based on order quantities.
7, We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
1.Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2.Q: How about the quality control?
A: All products will be tested for 3 times before packed.
3.Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
4.Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our pressure transmitter work perfectly at your end.
