Place of Origin:
China
ब्रांड नाम:
Kacise
प्रमाणन:
CE
Model Number:
GX-iPS600-8B
Application
Feature
Introduction

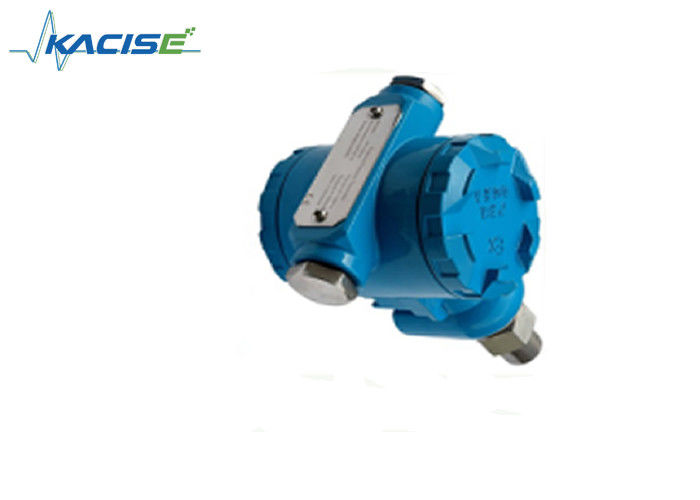

GX-iPS600-8A/8B series of low-power wireless pressure transmitter is a battery-powered LCD display, real-time data precision smart pressure measurement instruments; embedded Zigbee wireless communication module using the Zigbee protocol standard 2.4GHzRF transceiver, CSMA / CA anti-collision mechanism effectively avoid channel blocking send data at the same time and data loss.
It uses the 1# battery dry cell to supply the power, low-power design, the service life can up to six months or more.
Electronic interface and signals definition
Parameter
| Spec. | Value | ||
| Type | GXiPS600-8A | GXiPS600-8B | |
| Pressure range |
0~0.2MPa......60MPa; 2bar…600bar 29psi…8700psi; 20000MmH20…6118000mmH2O 1.97atm…592stm |
||
| Over pressure safe | 1.5 times span of nominal value | ||
| Secondary Containment | 3 times span of nominal value | ||
| Accuracy | ±0.5% of F.S | ||
| Long term stability | 0.25%F.S/Year | ||
| Operate temperature | -10°C~60°C | ||
| Compensated temperature range | -10°C~60°C | ||
| Media | compatible with Stainless Steel 1Cr18Ni9Ti | ||
| Data transmission channel | Wireless ZIGBEE | ||
| Power supply | 3.6V/1bettery(1 pcs) | ||
| Minimum isolation between case and terminations | 100M Ω@50V | ||
| Surge immunity | 500V@60 second | ||
| Shock and vibration | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
| Display panel | No display | 0.001~999999 | |
| Pressure Port: | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | ||
| Pressure type | Gauge, compound Gauge | React time: 10ms | |
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
