Place of Origin:
China
ब्रांड नाम:
Kacise
प्रमाणन:
Intrinsically safe mode E, explosion proof type D, CE
Model Number:
GXPS300
Application
Instruction

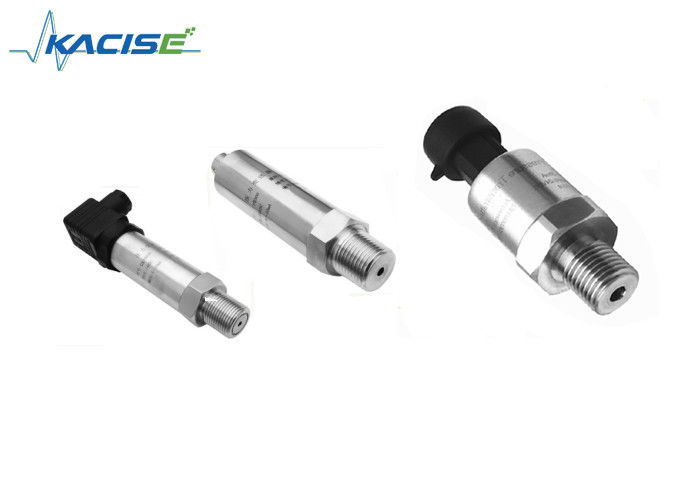

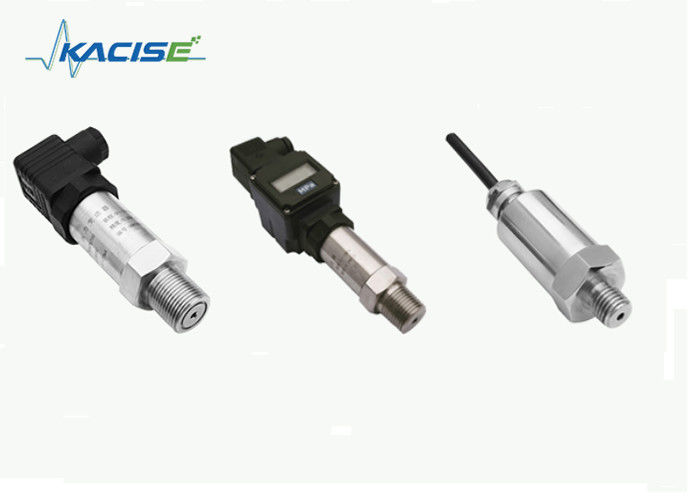

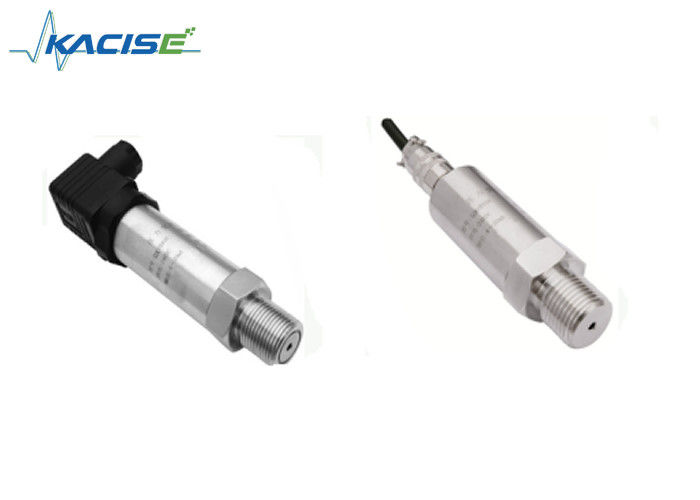

The GXPS300 Series pressure transmitter is a precision, high reliability, high cost,
variable range of industrial products. Widely used in gas, liquid pressure testing, such
as water, oil, mildly corrosive liquids and gases.
Features
Zero-position and scale span
Accept the one-piece, non-standard order
Display indicator are available
Digital compensation for all temp. range available
Multiple pressure range and signal output
Non polarized 2 wire system current output
Intrinsically safe mode explosion proof, CE
Range: -0.1~0MPa, 0~0.03MPa, 0~100MPa
Output: 4~20mA, 0~5V, 0.5~4.5V
Accuracy: 0.25%F.S, 0.5%F.S
Current: 24VDC,non-polarity wire
Electronic interface and signals definition
Parameter
| Spec. | Numerical value | ||||
| Pressure range |
−0.1MPa……−0.01MPa~0~0.01MPa……100.0MPa -0.98atm…-0.098atm~0.098atm…986atm PSI: -14.5PSI…-1.45PSI~1.45psi…14500psi BAR : -1BAR….-0.1BAR~0.1bar…1000bar -10000mmH2O…-1000mmH2O~1000mmH2O…10190000mmH2O InchHg: -29inchHg… -2.95inchHg~2.95inchHg…29500inchHg |
||||
| Overload pressure | 1.5 times nominal value | ||||
| Rupture pressure | 3 times nominal value | ||||
| Accuracy | ±0.25%F.S,±0.5%F.S | ||||
| Stability | Typical value 0.25%F.S, Max. value:0.4%F.S | ||||
| Operating temperature | -40°C~85°C (or -40°C~125°C) | ||||
| Compensation temperature | -10°C~70°C | ||||
| Medium | All Caustic Medium Compatible with 1Cr18Ni9Ti | ||||
| Electrical performance | 2 line | 3 line | 4 line | ||
| Output signal | 4~20mA | 0~20mA | 0~5V | 0.5~4.5V | 0~20mA |
| 0~10Vdc | 1~5V | 0.5~3V | 0~5/10Vdc | ||
| Power supply | 10~30Vdc | 11~30Vdc | 8~24Vdc | 5V Ratio | 8/11~30Vdc |
| Load resistance | (U-10)/0.02(Ω) | Current:(U-12)/0.02(Ω); voltage :>20KΩ | |||
| Insulation | >100MΩ @50V | ||||
| Electric strength | 500V@60 second | ||||
| Electrical connection | DIN43650,protection IP65; air plug GX16-7, IP45; IP68 | ||||
| Pressure tap | M20×1.5,G1/2,G1/4,G1,NPT1/2,NPT1/4,R1/4, (Ht) | ||||
| Response time | 10ms | ||||
| Certificate | Intrinsically safe mode E, explosion proof type D, CE | ||||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||||
