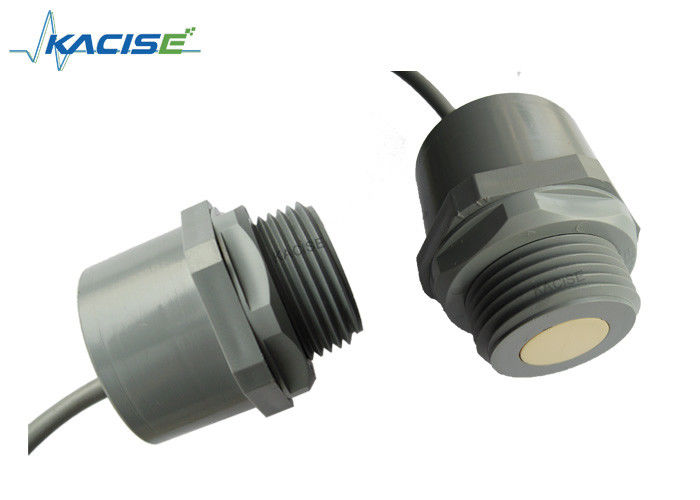

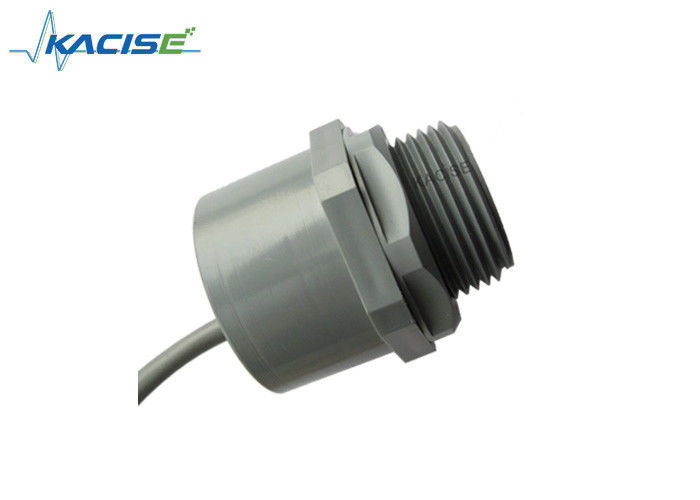

Digital RS485 and 0/10V Low Power Consumption Ultrasonic Water Level Sensor
1,Description
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
2,features:
3,Parameter
| General Parameters | Mechanical Properties | ||
| Detection Range | 200mm~3000mm | Connection | 5 pin cable |
| Transducer Frequency | 70KHZ | Weight | 100g |
| Repeatability Precision | ≤1% | IP grade | IP65 |
| Response Time | <50ms | ||
| Beam Angle | 7°±2 | ||
| Temp. Compensation | inside/outside/fix temp. | ||
| Electrical Parameters | |||
| Operating Voltage | 14.5VDC~27VDC | ||
| Limit Working Voltage | 13VDC~30VDC | ||
| Power Consumption | ≤30mA | ||
| Circuit Protection | short-circuit protection, overload protection | ||
| Output | Digital Output | RS485 | |
| Analogue Output | 0~5V | ||
| Switch Output | 0V / 5V | ||
| Ambient Environment | |||
| Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | ||
| Storage Temperature | -55~125℃ | ||
4,Dimensions
5,Application
6,Wiring
