उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
KACISE
प्रमाणन:
CE
Model Number:
KLD-601/602

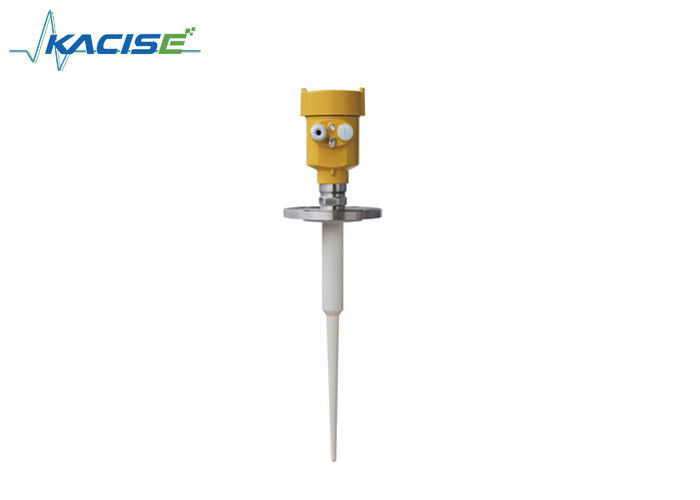

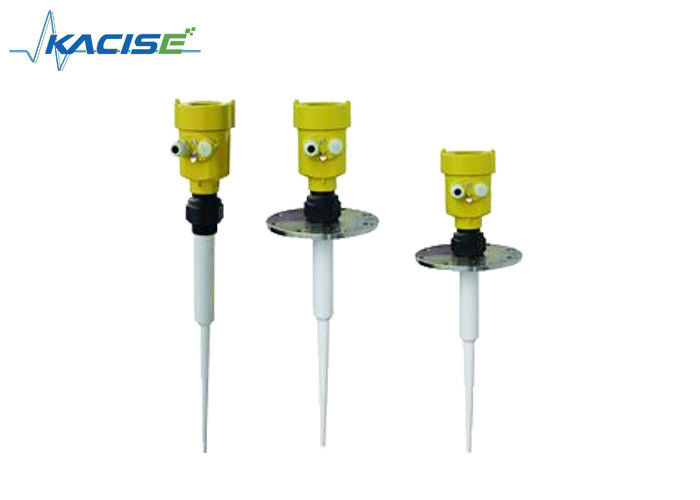

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G
Introduction
Antenna system to launch and microwave receiving energy is very low, very short pulse. Radar waves travel with the speed of light. The running time can be through the electronic components are converted into a signal. Measurement of this special time extension method can realize stable, accurate in a very short period of time.
Even if the condition is very complex, the presence of false echo, with the latest micro-processing technology and debugging software also can analyze the level echo accurately.
Parameters
| Suitable for Medium | Liquid, slightly corrosive liquid |
| Explosion-proof Grade | Exia IIC T6 Ga/ Exd ia IIC T6 Gb |
| Measuring Range | 20m |
| Aerials | The Rod Antenna (PP/PTFE) |
| Frequency | 6GHz |
| Temperature | (-40 ~ 130) ℃ |
| Measurement Precision | ±10mm |
| Process Pressure | (-0.1 ~ 0.3) MPa |
| The signal Output | (4 ~ 20) mA/HART |
| The Scene Display |
Four LCD/can be programmed |
| Power Source | Two-wire (DC24V) Four-wire(DC24V/AC220V) |
| Repeatability | ± 1mm |
| Casing | Aluminum/Plastic |
| Connection | Flange (optional) / Thread |
Tank Installation
A Standard Installation
The radar antenna cannot tilt to the tank wall
In order to minimize temperature effect,at the junction of butt joint of flange must use the spring washer
The rod antenna launching point must reach out to install pipe
The vertical placement of the rod antenna beam direction,don't let the tank wall
