Place of Origin:
CHINA
ब्रांड नाम:
KACISE
प्रमाणन:
CE
Model Number:
KVS120
वीडियो
वीडियो

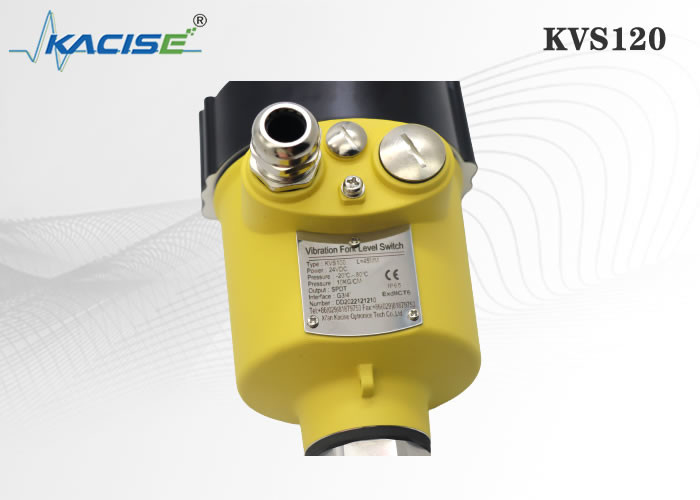

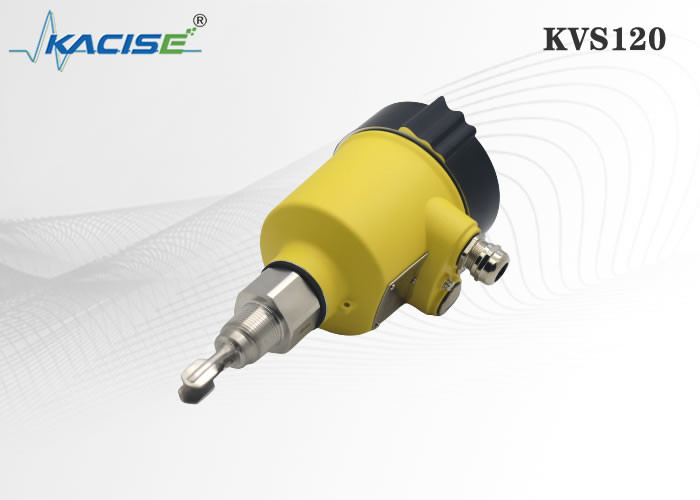

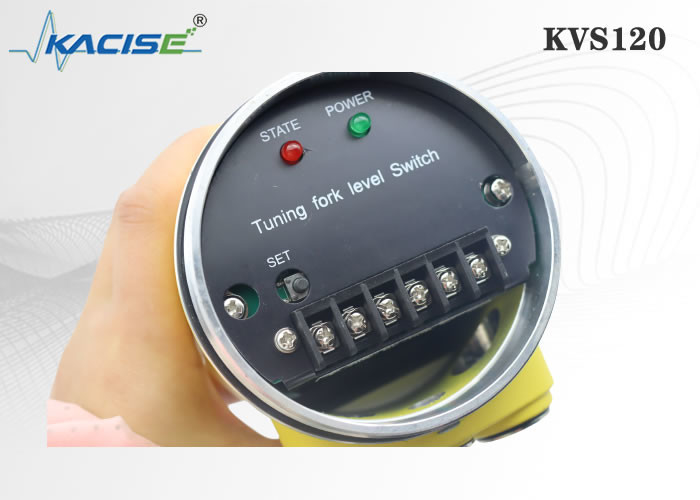

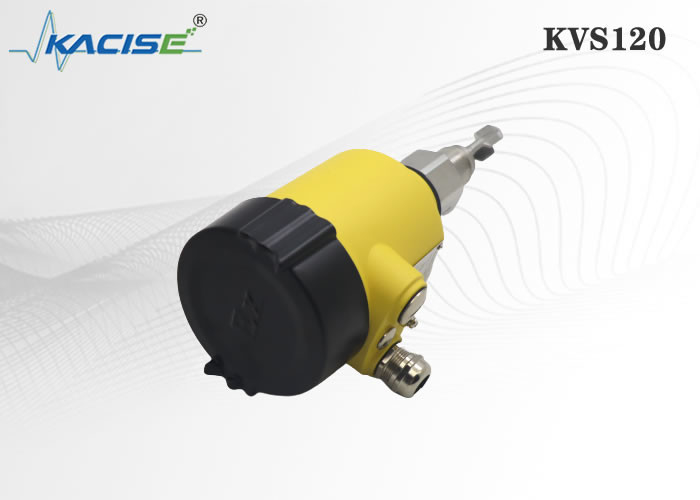

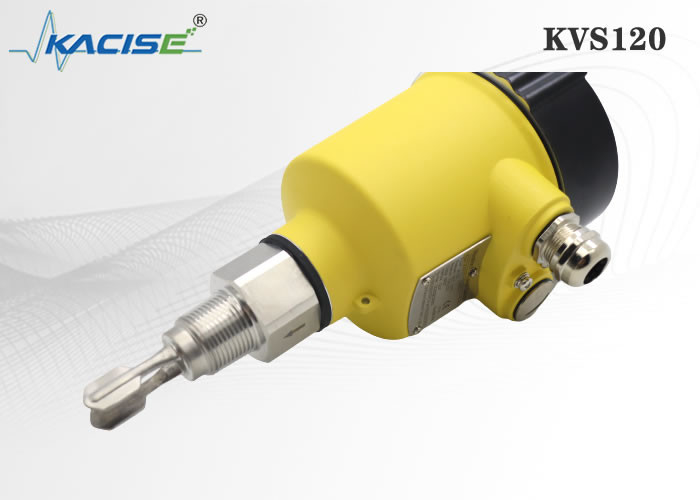

KVS100 Series Vibrating Fork Liquid / Solid Level Switch
| Item | Specification |
| Controller Casing Material | Aluminum alloy (IP65) |
| Power Supply | 22-60VDC, 22-220VAC, 50/60Hz |
| Power Consumption | DC-3W (MAX), AC-15W (MAX) |
| Output | DPDT 5A/250VAC or NPN/PNP |
| Operating Pressure | -1-40bar |
| Installation | vertical or horizontal |
| Model | KVS120 sanitary type |
| Connection | 2” clamp(customizable) |
| Rod Material | SUS304 / 316 |
| Operating Temperature | -40℃~130℃ |
| Insertion Length | 100mm(customizable) |
| KVS | ||||||
| Model | ||||||
| 120 | sanitary type | |||||
| Power and Output | ||||||
| Code | Power Supply | |||||
| A | 224VDC-220VAC relay output | |||||
| B | (NPN PNP transistor output) | |||||
| Code | Connection | Code | Size | |||
| A | 3/4” (20A) | M | 5Kg/cm2 | |||
| B | 1” (25A) | N | 10Kg/cm2 | |||
| C | 1-1/2” (40A) | O | 150Lbs | |||
| D | 2” (50A) | P | 300Lbs | |||
| E | 2-1/2” (65A) | Q | PT | |||
| F | 3” (80A) | R | PF (G) | |||
| G | 4” (100A) | T | NPT | |||
| H | 5” (125A) | U | sanitary joint | |||
| I | 6” (150A) | W | PN1.0 | |||
| S | customize | X | PN1.0 | |||
| Y | PN1.0 | |||||
| Z | PN1.0 | |||||
| S | customize | |||||
| Rod Length (mm) | ||||||
|
Note: 1. The total length of the product is affected by the function adjustment, and the tolerance is ±5mm. 2. Features, specifications and dimensions could be modified when necessary without prior notice. |
||||||
