Place of Origin:
CHINA
ब्रांड नाम:
KACISE
प्रमाणन:
CE
Model Number:
KVS140
वीडियो
वीडियो

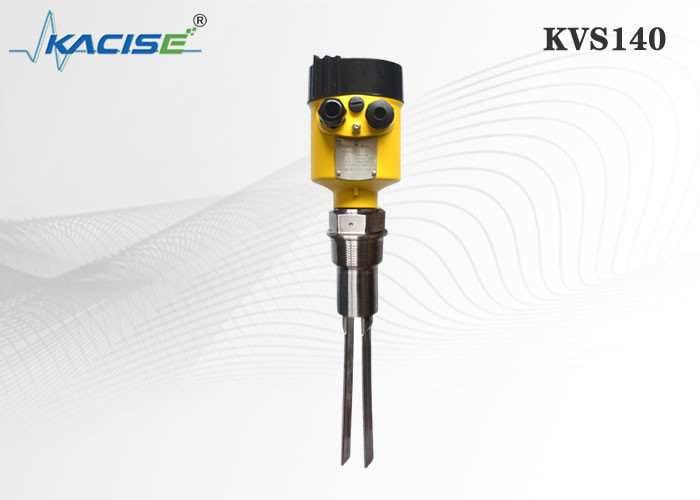

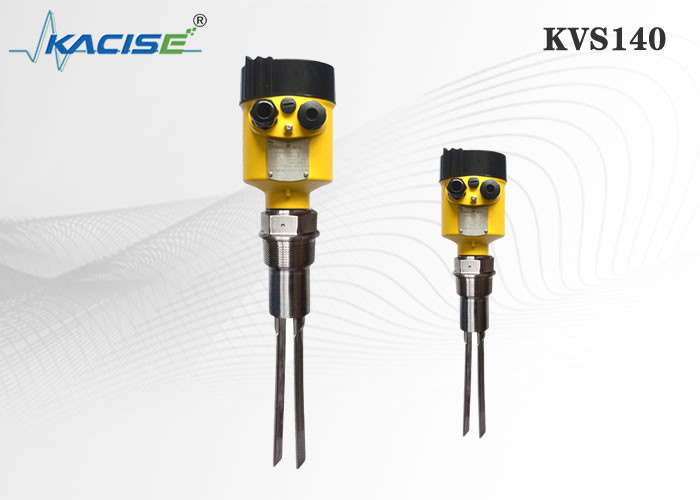

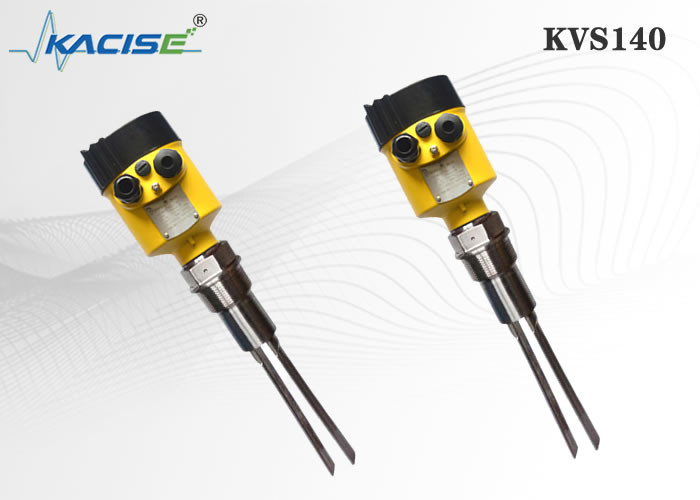

KVS100 Series Vibrating Fork Liquid / Solid Level Switch
Due to the natural principle that the sensitivity of the sensing rod gradually decreases from the front end to the rear seat, no error signal will be generated when the material in the tank and the barrel are stacked upwards, touching the base of the sensing rod (rear) or discharging.
The tuning fork generates mechanical vibrations under the excitation of a piezoelectric crystal, and the vibration has a certain frequency and amplitude. When the tuning fork is submerged by liquid or solid, the vibration frequency and amplitude of the tuning fork will change. This frequency change is detected by the electronic circuit and outputs a switching signal.
| Item | Specification |
| Controller Casing Material | Aluminum alloy (IP65) |
| Power Supply | 22-60VDC, 22-220VAC, 50/60Hz |
| Power Consumption | DC-3W (MAX), AC-15W (MAX) |
| Output | DPDT 5A/250VAC or NPN/PNP |
| Operating Pressure | -1-40bar |
| Installation | vertical or horizontal |
| Model | KVS140 big fork body type |
| Connection | G1-1/2” (customizable) |
| Rod Material | SUS304 / 316 |
| Operating Temperature | -40℃~130℃ |
| Insertion Length | 170mm(customizable) |
| KVS | ||||||
| Model | ||||||
| 140 | big fork body type | |||||
| Power and Output | ||||||
| Code | Power Supply | |||||
| A | 224VDC-220VAC relay output | |||||
| B | (NPN PNP transistor output) | |||||
| Code | Connection | Code | Size | |||
| A | 3/4” (20A) | M | 5Kg/cm2 | |||
| B | 1” (25A) | N | 10Kg/cm2 | |||
| C | 1-1/2” (40A) | O | 150Lbs | |||
| D | 2” (50A) | P | 300Lbs | |||
| E | 2-1/2” (65A) | Q | PT | |||
| F | 3” (80A) | R | PF (G) | |||
| G | 4” (100A) | T | NPT | |||
| H | 5” (125A) | U | sanitary joint | |||
| I | 6” (150A) | W | PN1.0 | |||
| S | customize | X | PN1.0 | |||
| Y | PN1.0 | |||||
| Z | PN1.0 | |||||
| S | customize | |||||
| Rod Length (mm) | ||||||
|
Note: 1. The total length of the product is affected by the function adjustment, and the tolerance is ±5mm. 2. Features, specifications and dimensions could be modified when necessary without prior notice. |
||||||
