Ultrasonic Fuel Level Sensor for truck
1. Principle of Operation
External liquid lever sensor with sonar ranging principle,using the temperature integrate sensor to process the sonar signal. the sensor is pasted in the outerwall of the tank. Using the patented algorithm to calculate the height of the liquid in the tank and output to a remote control system(eg.DCS) through (4-20)mA,HART, RS-485, Modbus.
According the figure right, the time is taken for the signal to be transmitted and then received from the liquid surface. Signals
from the transducer are fed into the processor and then processed by patented algorithm to calculate the height of the liquid according to the formula:
H=αV(t-t1)/2
H: height of the liquid
v: velocity of sound in the liquid
t: time between transmitted and received signal
t g : propagation time in the tank wall
α :liquid compensation factor
2. Applications
LPG tanks
Liquid ammonia tanks
Liquid propane tanks
Fuel tanks
Acids/solvents tanks
Concentrated sulfuric acid(98%) tanks
Nitric acid tanks
Hydrochloric acid tanks
3. Features
True non-invasive sensing technology
The sensor sticks to the outside of the tank bottom
Suitable for most shapes and sizes of cans
Output to telemetry system - various options
CNEX approved for use in hazardous areas
(processor and sensor)
Temperature integrated sensor
Low cost, reliable & accurate tank gauging
Not affected by pressure
Easy installation - no tank break-in
Simple retroft to existing tanks
No down-time during installation
No moving parts – no maintenance
3. Parameter
| Measure Range | 5cm~3m diesel oil water as so on |
| Measure Precision | 0.5%F.S |
| Power Supply Way | 24vdc |
| Defend Grade | IP66 |
| Operating Temperature | -20°C~ 50°C |
| Storage Temperature | -25°C~70°C |
| Cable Length | 8m , can be customized |
| Communication | RS485, RS 232, GPS tracker |
| Display Resolution | 1 mm |
| Current output (optional) | 4-20ma RS485 RS232 |
4. Package
In order to choose the suitable pressure sensor for you, please send us below information with the feedback.
1. Application field
2. accuracy
3. output signal
4. power supply voltage
5. Measuring range
6. medium
7. temperature range
5. Application Picture

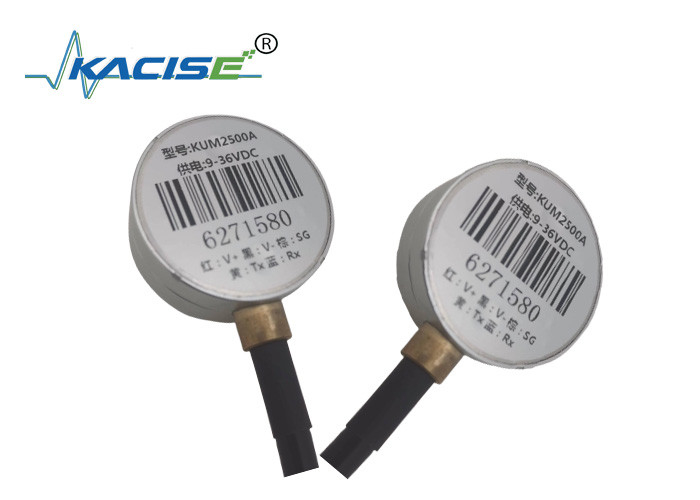

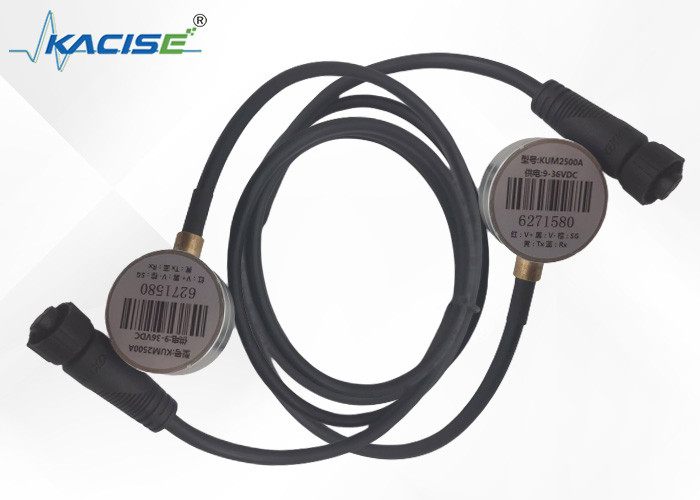

5. Product Picture
