Name: KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: केक्यूएस-बीजी-एम
Price: 5,000.00 USD
Availability: InStock

घर > उत्पादों > Environmental Monitoring >

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

KACISE

प्रमाणन:

मॉडल संख्या:

केक्यूएस-बीजी-एम

हमसे संपर्क करें

बोली मांगें

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

उत्पाद का विवरण

मापा मापदंड:

रोशनी, तापमान, आर्द्रता, CO2 एकाग्रता

तापमान की रेंज:

-20 से 50°C (एनालॉग) / -40 से 100°C (डिजिटल)

आर्द्रता सीमा:

0-100% आरएच

CO2 रेंज:

0-5000 पीपीएम

सुरक्षा रेटिंग:

आईपी65

शुद्धता:

तापमान: ±0.3°C; आर्द्रता: ±5% आरएच; CO2: ±(50 पीपीएम+5%); प्रकाश: ±4%

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

पैकेजिंग विवरण

प्रत्येक इकाई में अलग-अलग बॉक्स होते हैं, सभी बॉक्स मानक पैकेज या ग्राहक के अनुरोध के अनुसार पैक किए

प्रसव के समय

5-8 कार्य दिवस

भुगतान शर्तें

एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

1000 पीस/टुकड़े प्रति सप्ताह परक्राम्य

संबंधित उत्पाद

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

सबसे अच्छी कीमत पाएं

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

सबसे अच्छी कीमत पाएं

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

सबसे अच्छी कीमत पाएं

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

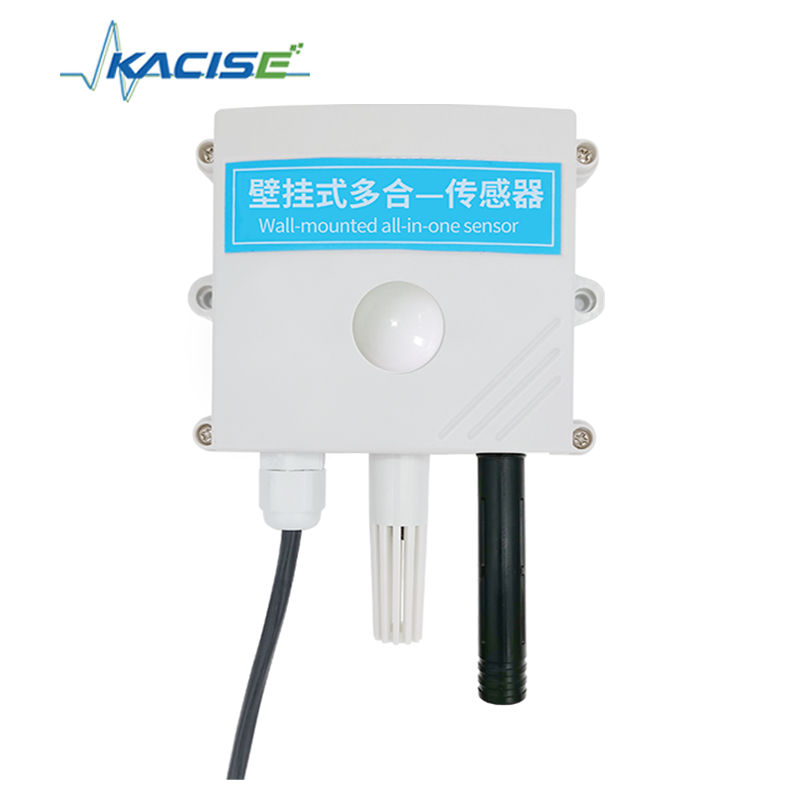

KQS-BG-M Wall-Mounted Multi-Parameter Sensor

The KQS-BG-M wall-mounted multi-parameter sensor is an integrated device designed for measuring environmental parameters such as illuminance, temperature, humidity, and CO2 concentration. It features a high-protection housing with an IP65 rating, offering resistance to rain and snow while maintaining good breathability.

The product adopts an industrial-grade microprocessor chip imported from the United States and a high-precision temperature and humidity sensing chip imported from Switzerland, ensuring excellent reliability, high accuracy, and strong interchangeability. The sensor supports RS485/RS232 communication interfaces and standard Modbus protocol, making it easy to connect with other data acquisition systems. It can also output up to 4 channels of analog signals (current and voltage outputs). Digital outputs support Modbus or ASCII protocols, enabling secondary development with stable performance and easy installation.

Product Features

Factory dual calibration ensures high measurement accuracy
Secondary linear calibration provides stable and reliable data output

Technical Parameters

Item	Specification
Range	Temperature: -20-50°C (analog output) -40-100°C (digital output) Humidity: 0-100% RH CO₂: 0-5000 ppm Light: 0-200,000 Lux (indoor) 0-65,535 Lux (outdoor)
Accuracy	Temperature: ±0.3°C Humidity: ±5% RH CO₂: ±(50 ppm + 5%) Light: ±4%
Resolution	Temperature: 0.1°C Humidity: 0.1% RH CO₂: 1 ppm Light: 1 Lux
Power supply	5 V or 9-30 V wide-voltage optional
Signal output	Current: □ 4-20 mA □ 0-20 mA Voltage: □ 0-2.5 V □ 0-5 V □ 1-5 V Serial: □ RS485 / RS232 optional
